AMG150-1GAT-P30
5060811143599

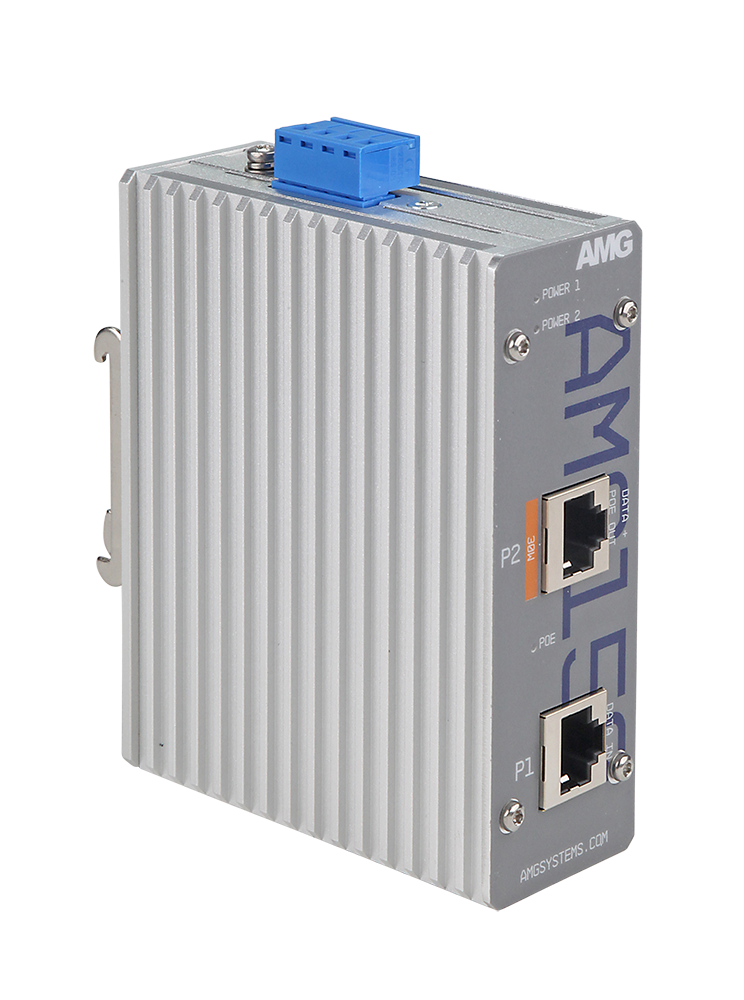

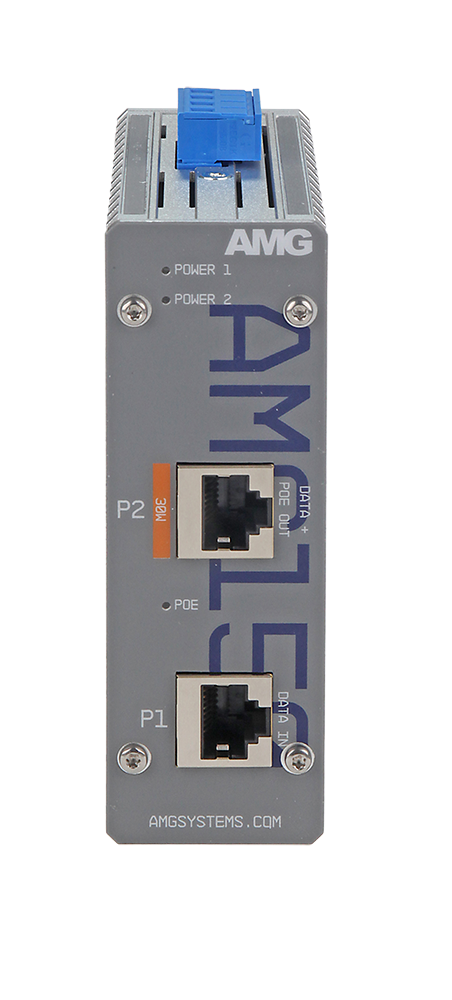

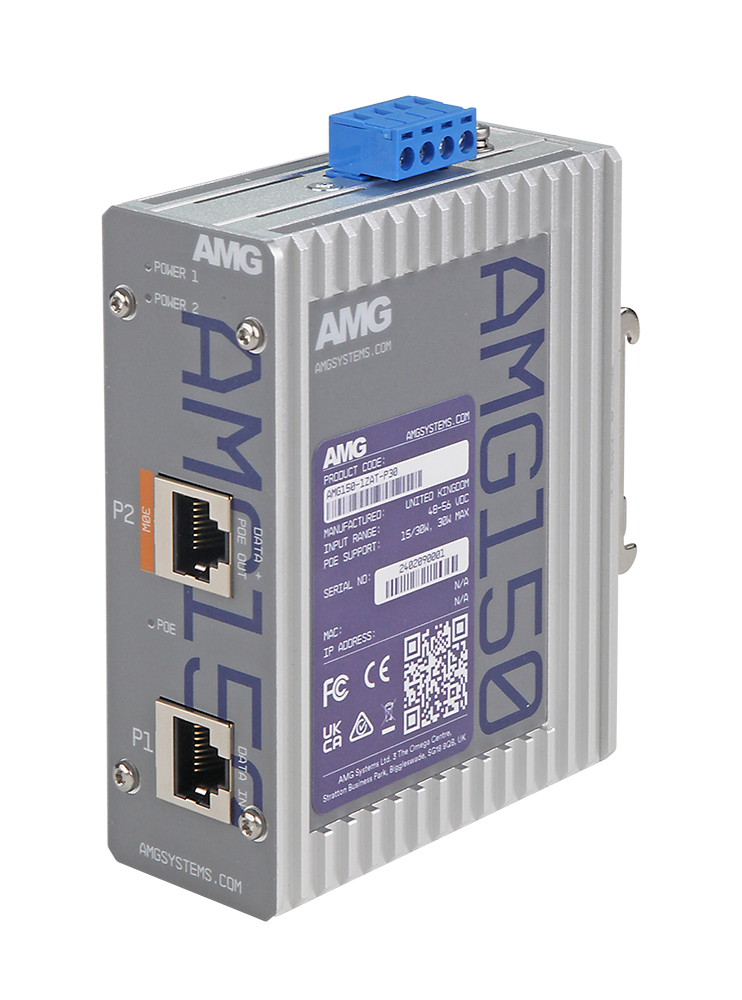

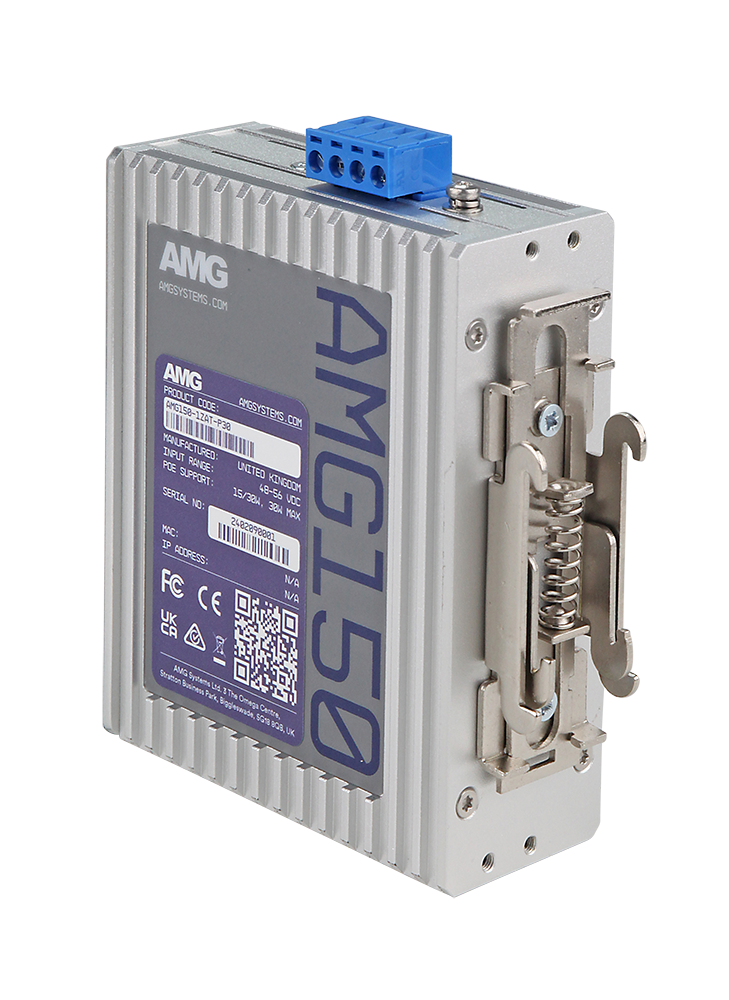

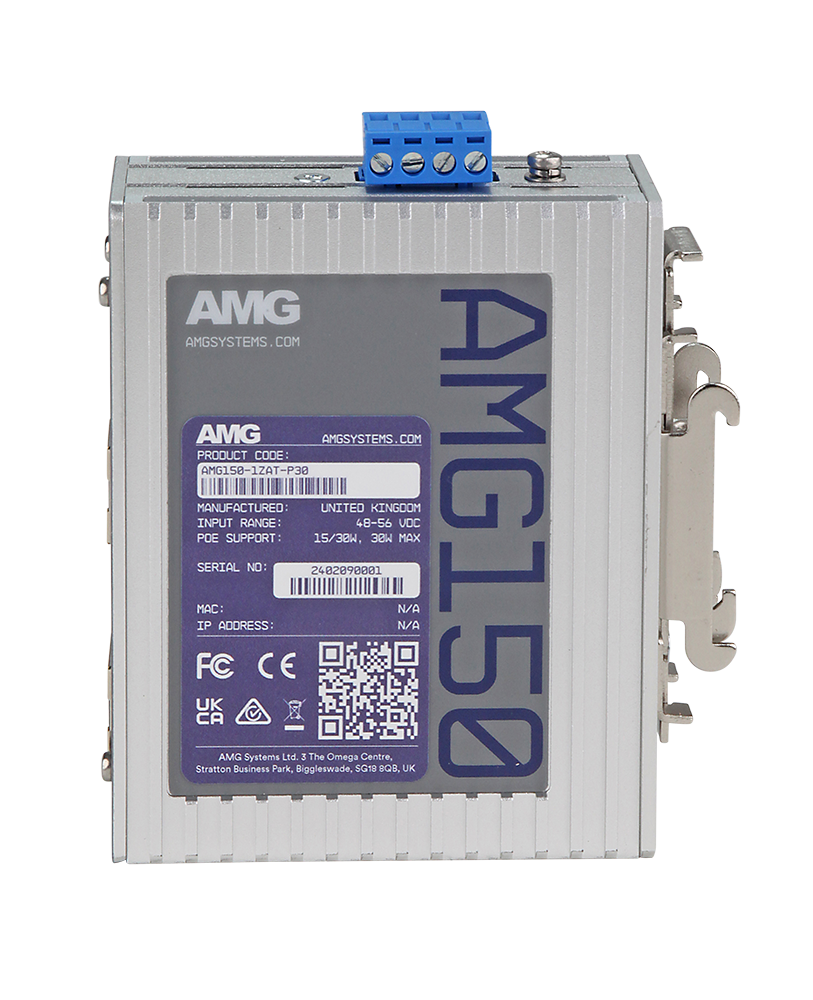

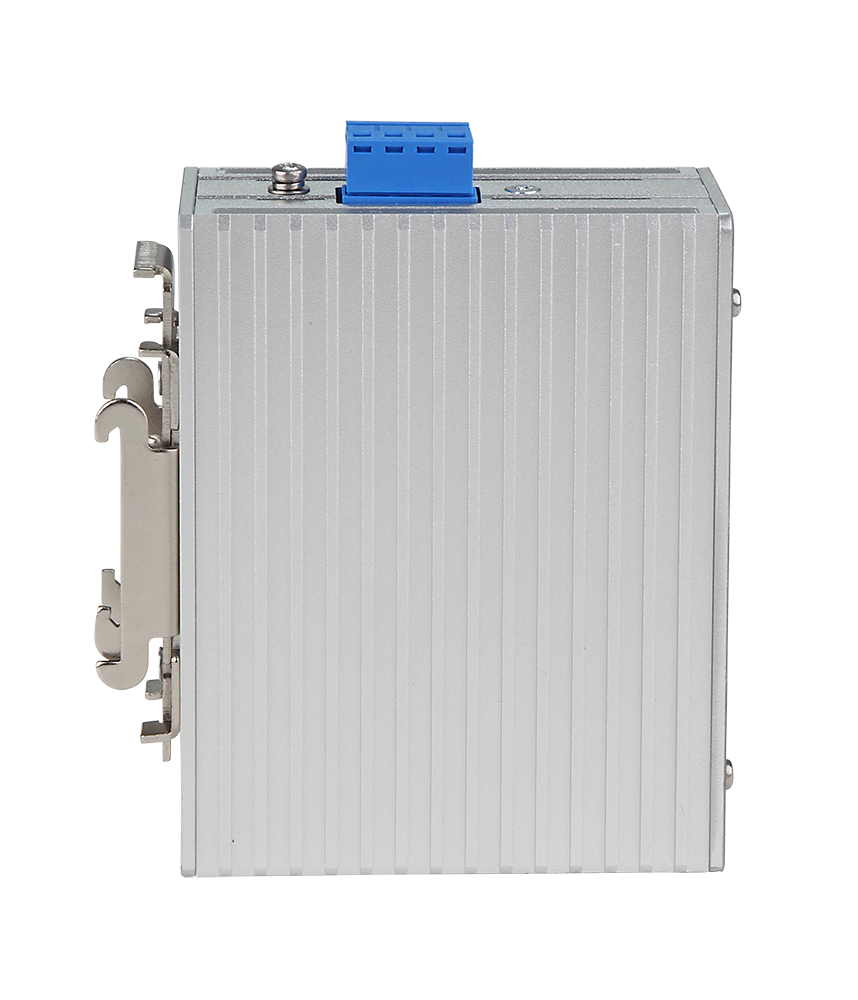

Industrial 1 Port PoE Injector, 1 x 10/100/1000Base-T(x) RJ45 Port (Input), 1 x 10/100/1000Base-T(x) RJ45 Port With 802.3at 30W PoE (Output), DIN Rail / Wall Mount, -40°C to +75°C, 48-56 VDC Power Input
Features
- Compact size – ideal for confined spaces, including camera poles and roadside cabinets
- -40°C to +75°C temperature maintains performance in extreme conditions
- Plug & Play – no need for any user configuration

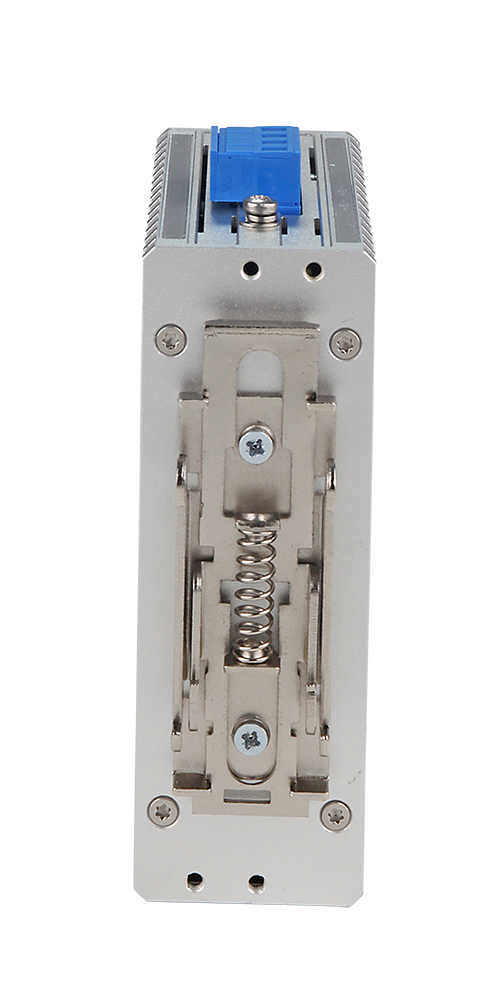

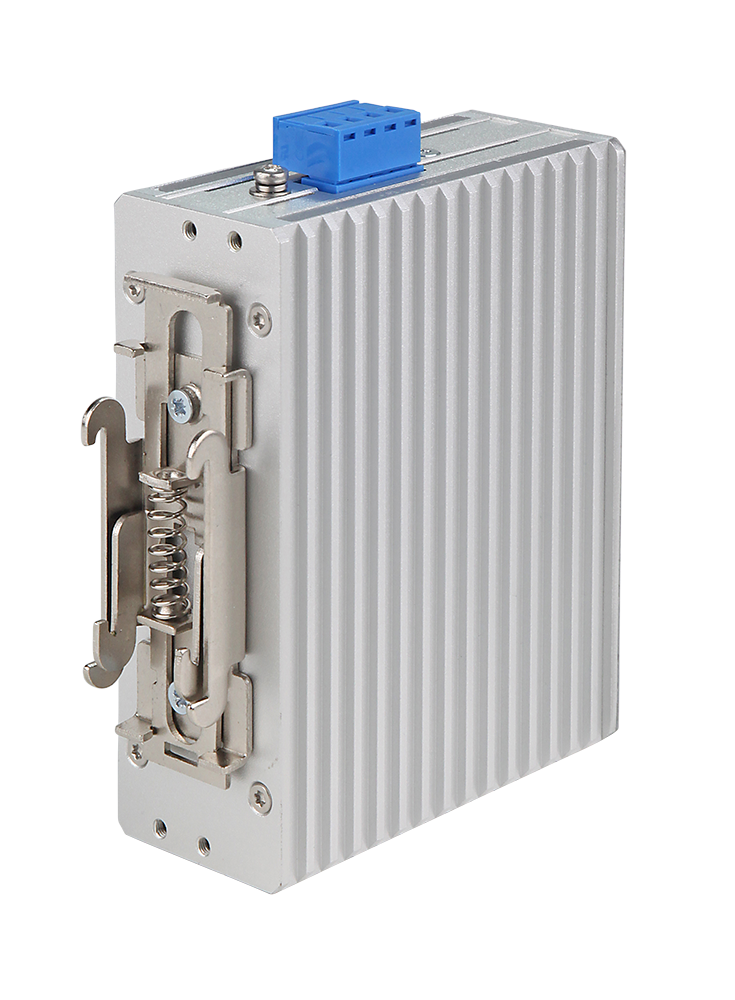

- DIN rail mountable – quick to install and remove for maintenance
- RJ45 ports support all standard 10/100/1000Mb speeds
- Dual redundant power inputs
- Supports 15W and 30W PoE
- Integrated surge protection with up to 20kA discharge capability for maximum protection in harsh environments
- Designed in the USA & UK. Manufactured in the United Kingdom
- AMG Lifetime Support Warranty
Product Status
Active
Designed in a compact DIN rail or wall mount housing, the AMG150 series industrial Power over Ethernet (PoE) injectors are ideally suited for providing power to remote edge network devices.
Available in both IEEE802.3at 30W or IEEE802.3bt 60/90W models they are suitable for powering the latest high powered PoE devices over a wide industrial operating temperature range.
Designed as standard single channel injectors supporting 1Gb Ethernet or 1/2.5/5/10Gb Ethernet depending on the model selected.
Fitted with dual redundant power inputs and robust surge protection ensures maximum operating reliability and the highest levels of performance.
A wide range of models are available to suit all design requirements.
PSUs need to be ordered separately.
Product Features
Application Diagram
1Gb RJ45 Ports
1
30W PoE Ports
1
MTBF (Hours)
500000
Power Consumption (W)
2
Power Inputs
2
Power Interface
4 Pin Removable Terminal Block
Input 1 Voltage
48-56 VDC
Input 2 Voltage
48-56 VDC
Heat Dissipation at Max Load (BTU/h)
109
Operating Temperature
-40°C to +75°C
Storage Temperature
-40°C to +85°C
Recommended PSUs
AMGPSU-I48-P60A (60W 52VDC)
IP Rating
IP40
Product Class
Industrial Grade
Warranty
AMG Lifetime Warranty
Number of Ports
1-2
Compliance
NDAA Compliant
TAA Compliant

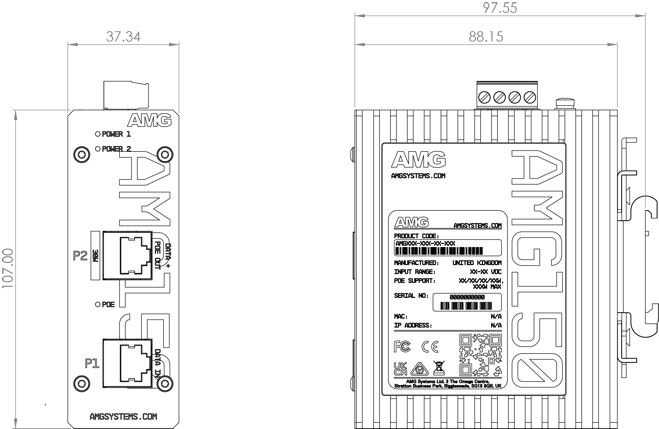

Dimension Drawing (mm)
Dimensions
Width = 37 (mm) / 1.46 (in)
Depth = 88 (mm) / 3.46 (in)
Height = 107 (mm) / 4.21 (in)
Depth = 88 (mm) / 3.46 (in)
Height = 107 (mm) / 4.21 (in)
