AMG210C

5060811140727

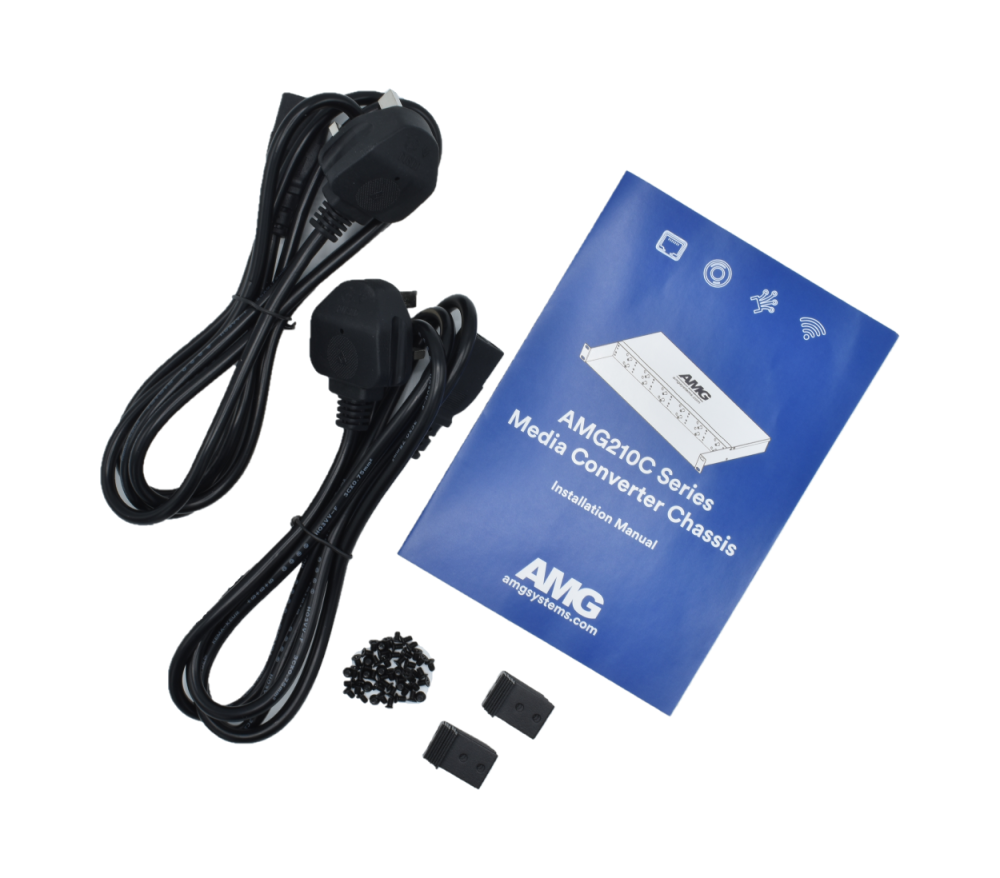

Media Converter Rack Chassis for AMG210M units, 12 Slots, 1U 19inch Rack Mount, Commercial Grade 0-50⁰C, Dual Integrated Hot Swappable 90-264VAC Power Supplies, EU, US or UK Type Power Leads Included
Features
  • Up to 12 slots for Commercial Mini Media Converters
  • 19inch standard rack-mount size and only 1U high
  • Hot-swappable replacement of Media Converters and Power Supplies
  • Two redundant Power Supplies with two cooling fans
  • Front & rear LED indication for power supply and fan operation to aid installation and system fault diagnosis
  • Compatible with any AMG210M series non-PoE mini media converter (100Mb, 1Gb or 10Gb models)
  • AMG 3 Year Support Warranty

Product Status

Active

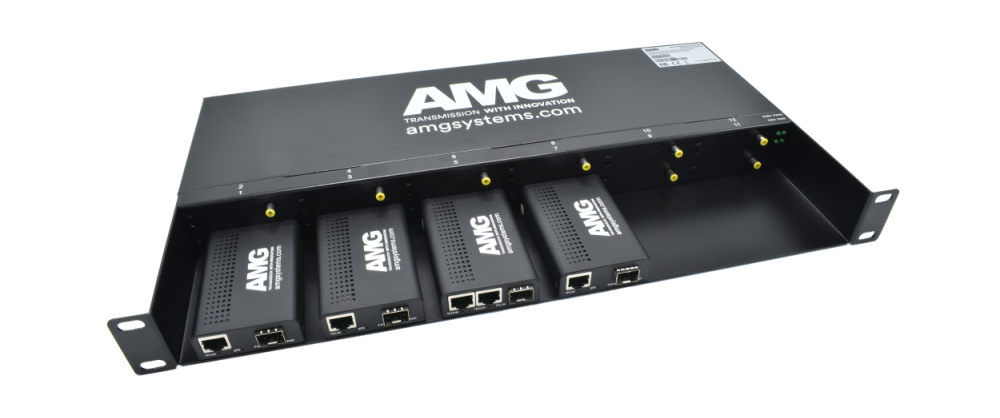

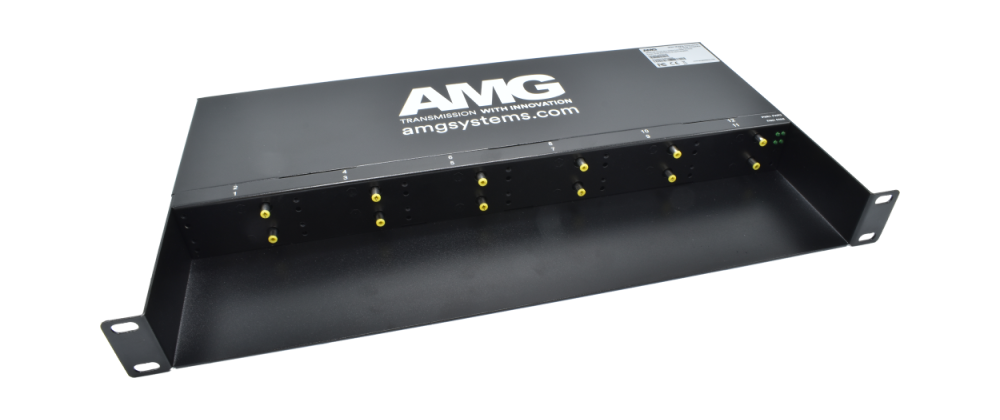

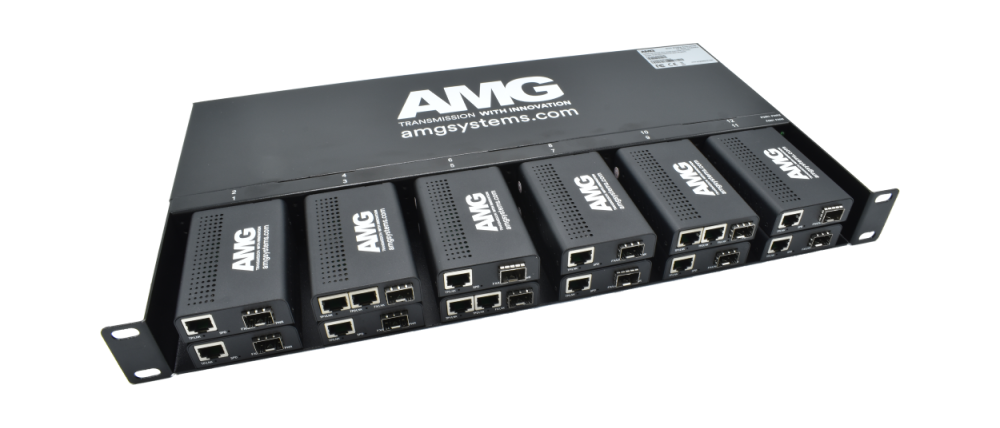

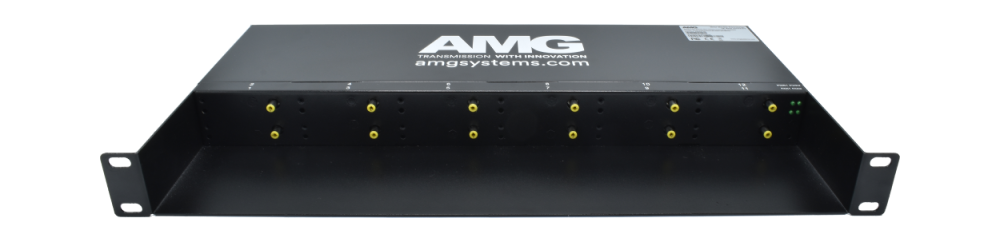

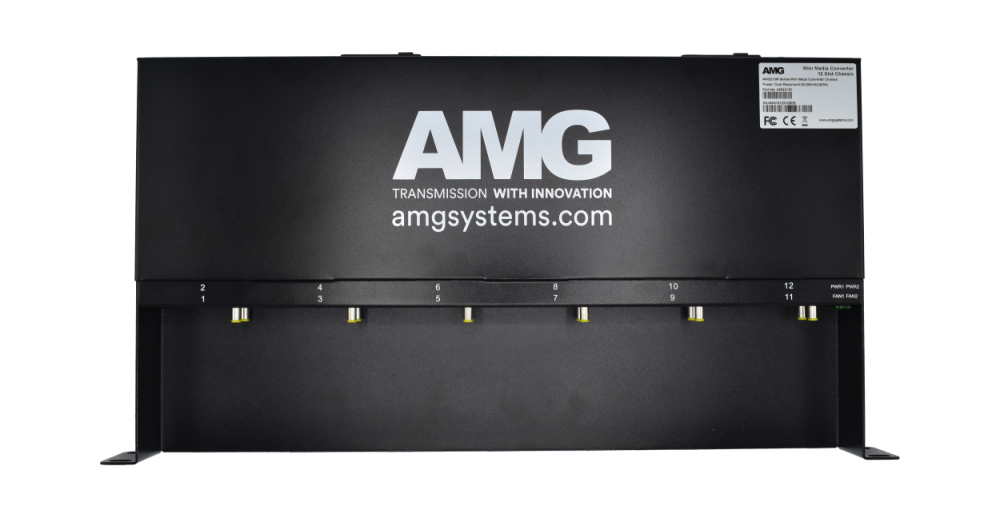

The AMG210C Media Converter Rack allows up to 12 Commercial Mini Media Converters to be mounted into a 19” rack quickly and easily.

The ultra low 1U profile allows for very high rack density saving valuable space within the typical 19inch rack environment.

The AMG210C rack chassis supports all non-PoE models from the AMG210M Commerical Mini Media Converter range including 100Mb, 1Gb and 10Gb models.

Each rack supports up to 12 mini media converters and occupies only 1U of rack space within the equipment cabinet offering the highest media converter rack denisty within the industry for space restricted installations.

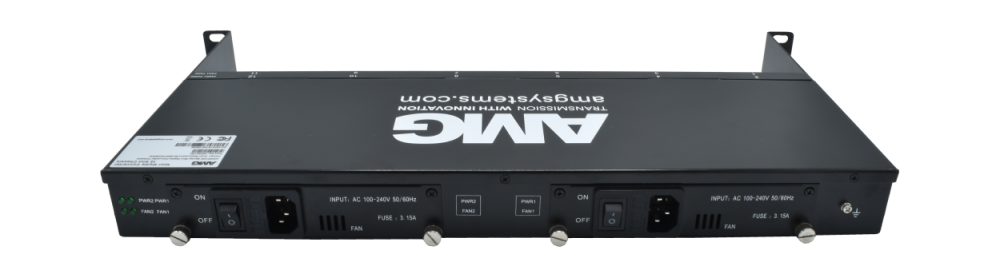

The rack ships as standard with dual power supplies to provide redundancy and supports hot-swappable replacement of both Media Converters and Power Supplies.

The included dual redundant power supplies support full range 90-264VAC input for international operation.

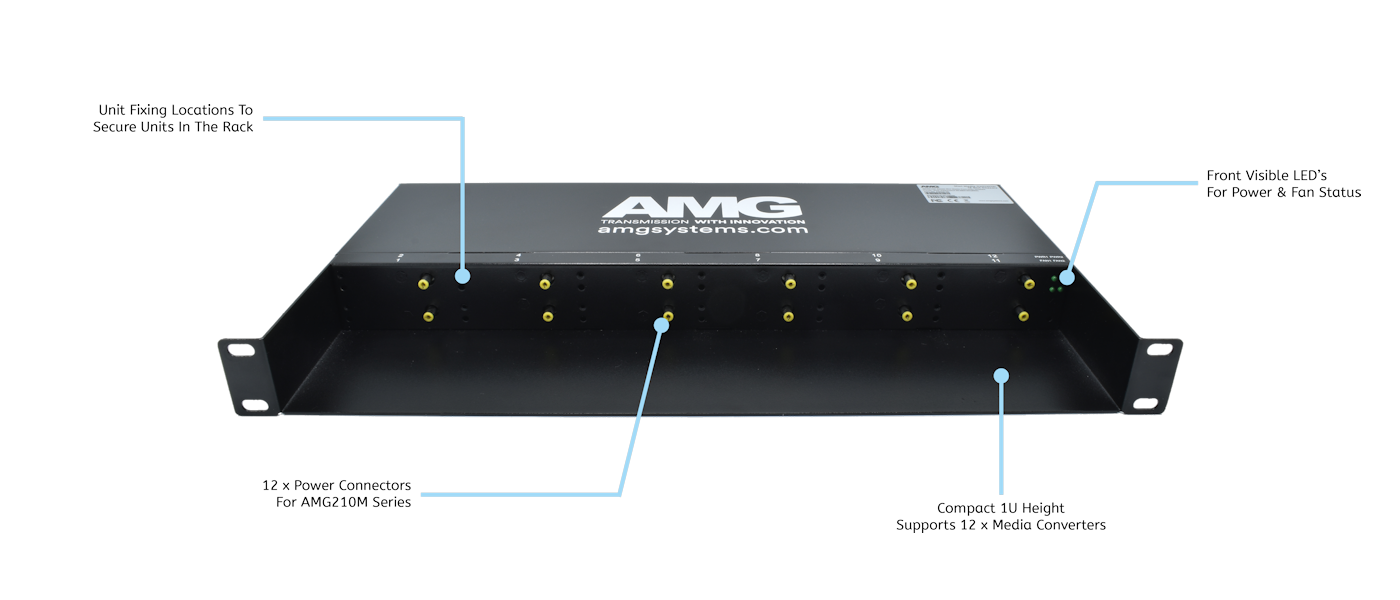

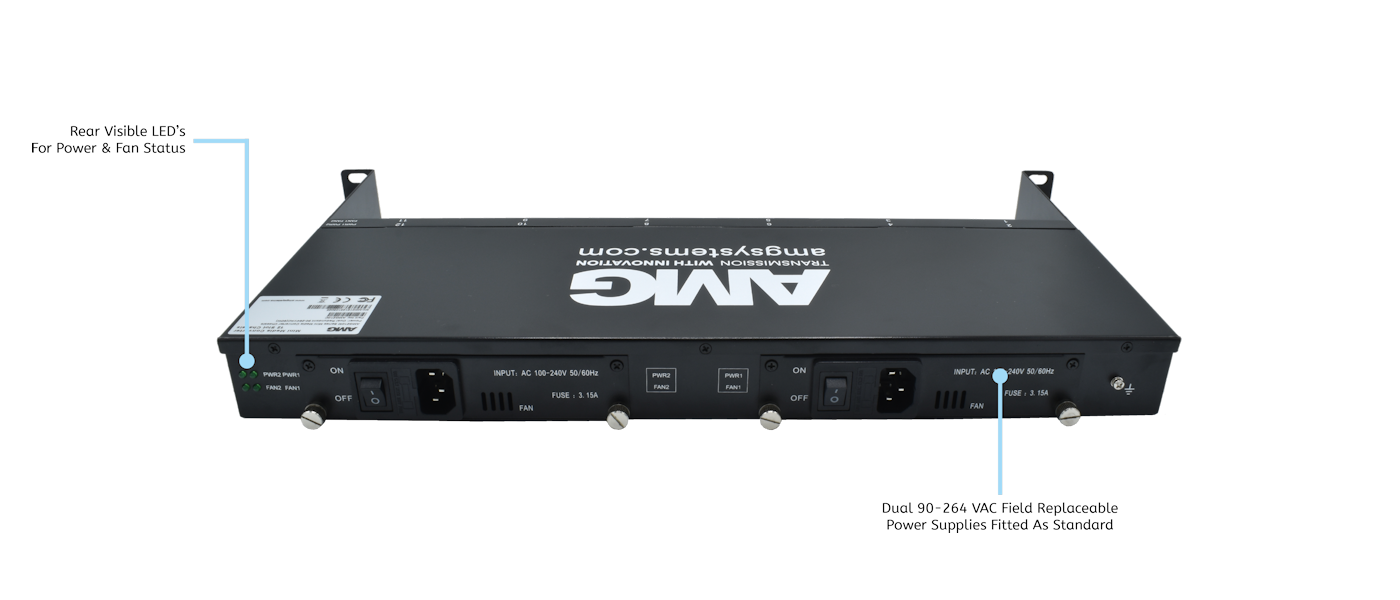

Product Features


Application Diagram

Subrack Slots
12
Subrack Height
1U
Output Voltage
12x 12VDC
60W Max
Power Interface (Output)
12x 2.1mm Plugs
Indicating LEDs
2x Power
2x Fan Operational
Input Current
1.8A (115 VAC) / 1A (230 VAC)
Efficiency
>84%
MTBF (Hours)
100819
Power Consumption (W)
0
Power Inputs
2
Power Interface
2x IEC C14 Sockets
Operating Temperature
0°C to +50°C
Storage Temperature
-20°C to +70°C
IP Rating
IP30
Input 1 Voltage
90-264 VAC
Input 2 Voltage
90-264 VAC
Product Class
Commercial Grade
Warranty
AMG 3 Year Support Warranty

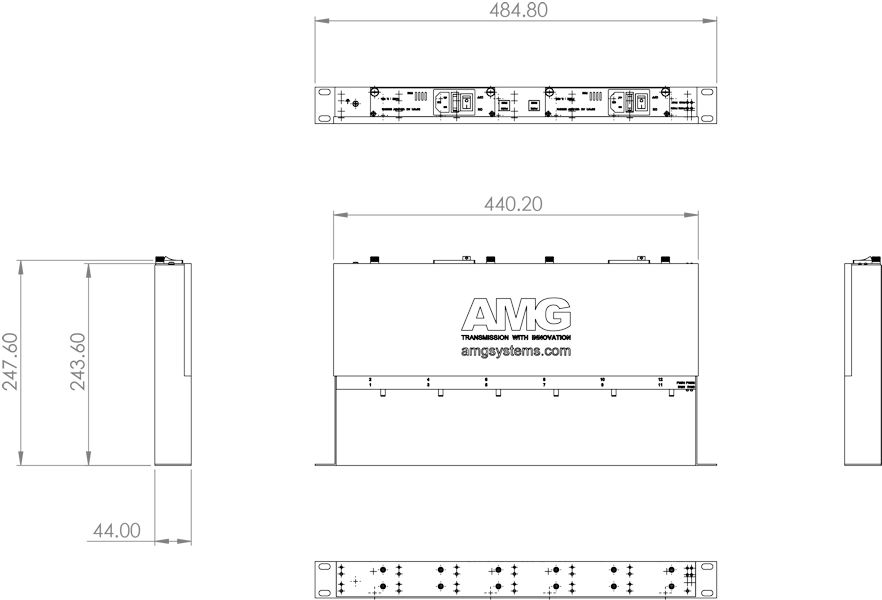

Dimension Drawing (mm)

Dimensions
Width = 440 (mm) / 17.32 (in)
Depth = 243 (mm) / 9.57 (in)
Height = 44 (mm) / 1.73 (in)
3D Model

If the 3D model fails to load click the full screen icon (four arrows) in the top right corner.
