AMG2034

5060811141892
Industrial Retractable Rack Chassis For AMG DIN Rail Units, 4U 19inch Rack Mount, -40 to +70°C, Integrated Cable Management, PSU Not Included, No DC Unit Connections, Compatible With Any AMGPSU Series DIN Rail Power Supply
Features
  • Up to 10 positions for AMG or 3rd party products
  • 19inch standard rack-mount size 4U high
  • Compatible with any AMG or 3rd party DIN rail mountable products
  • Integrated cable management features ensure a clean installation
  • Manufactured in the United Kingdom
  • AMG Lifetime Support Warranty

Product Status

Active

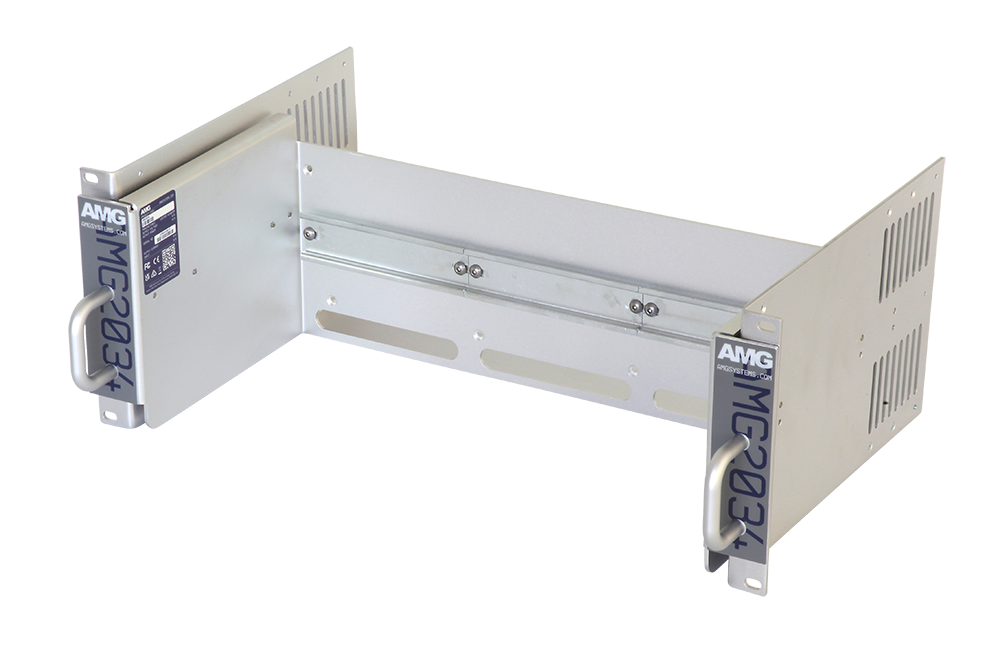

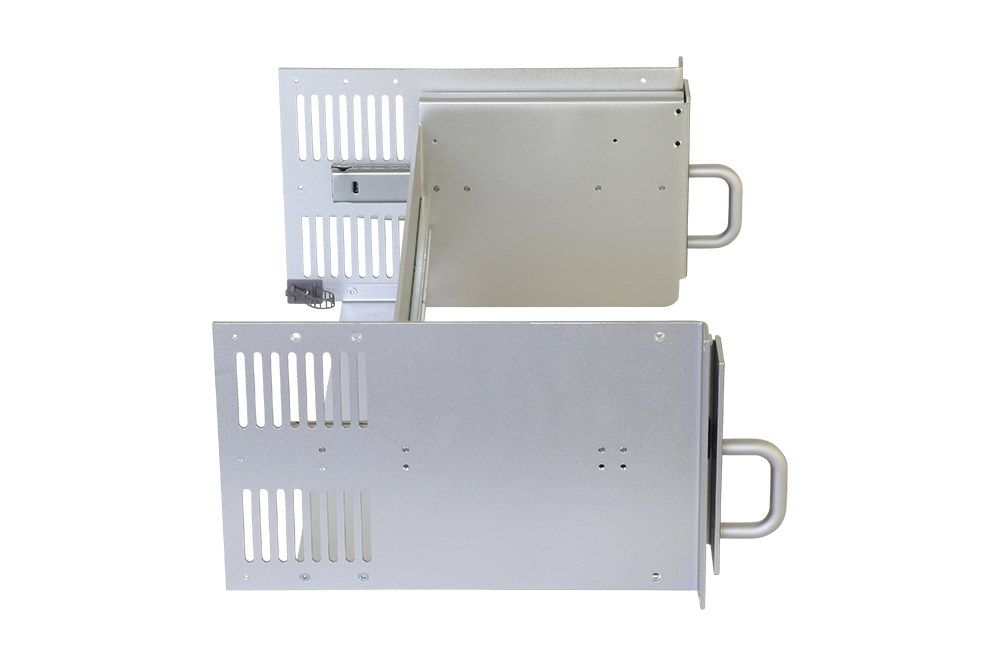

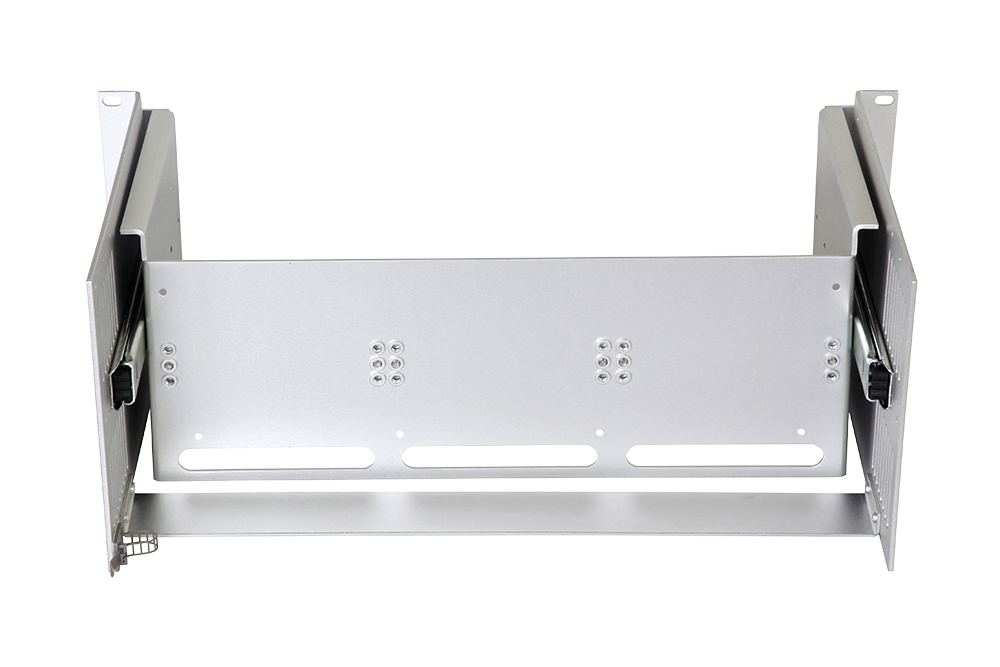

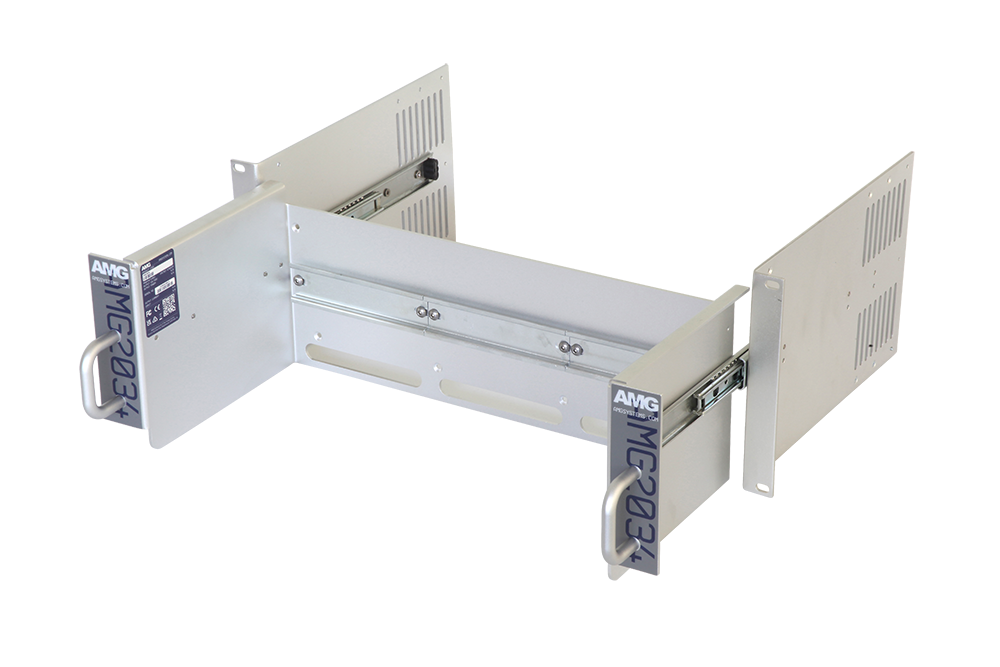

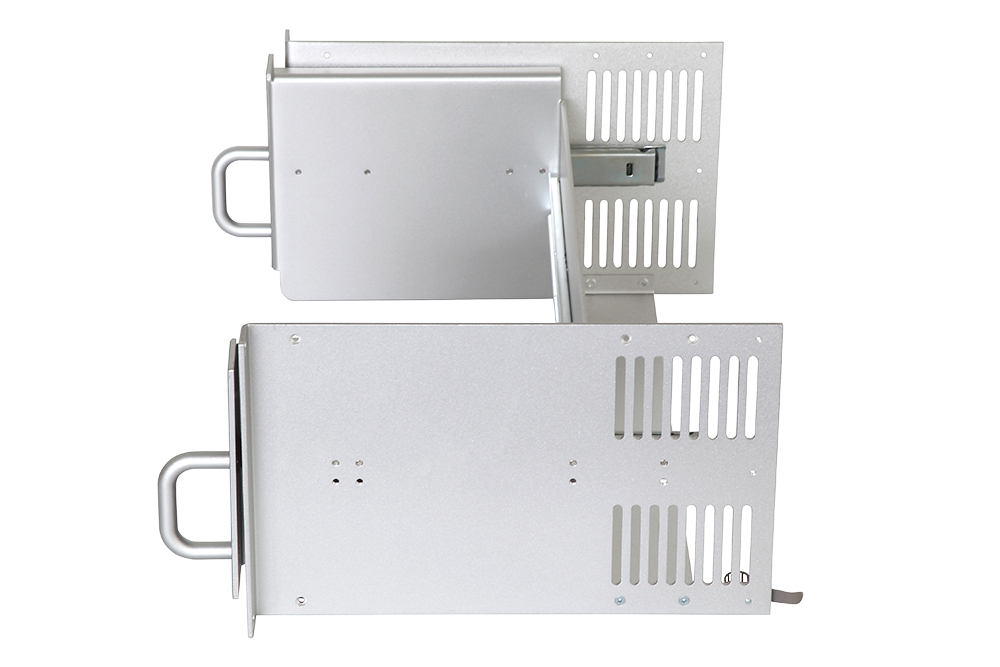

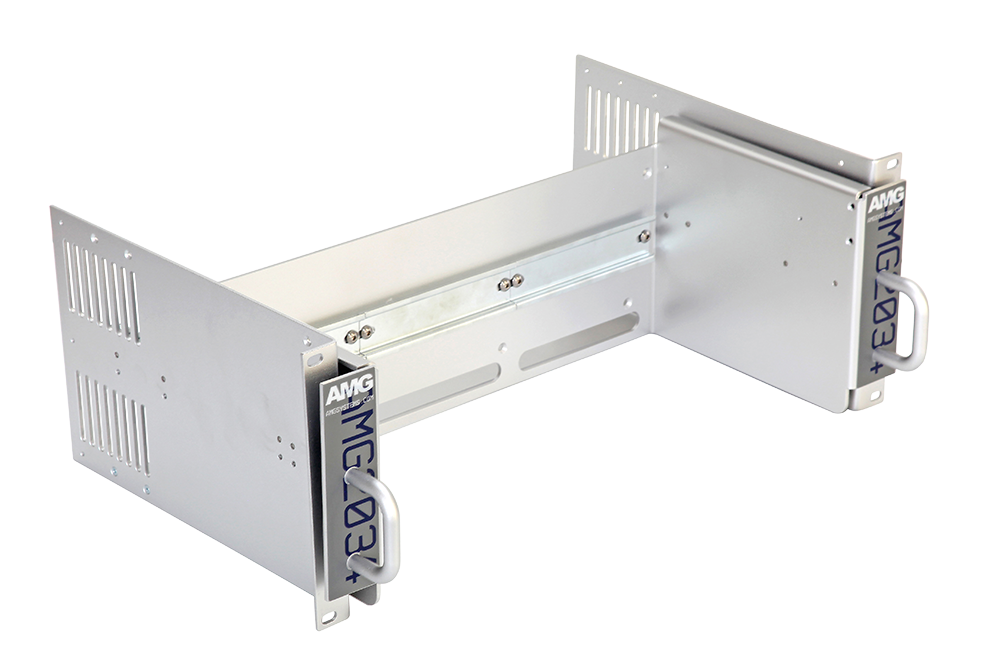

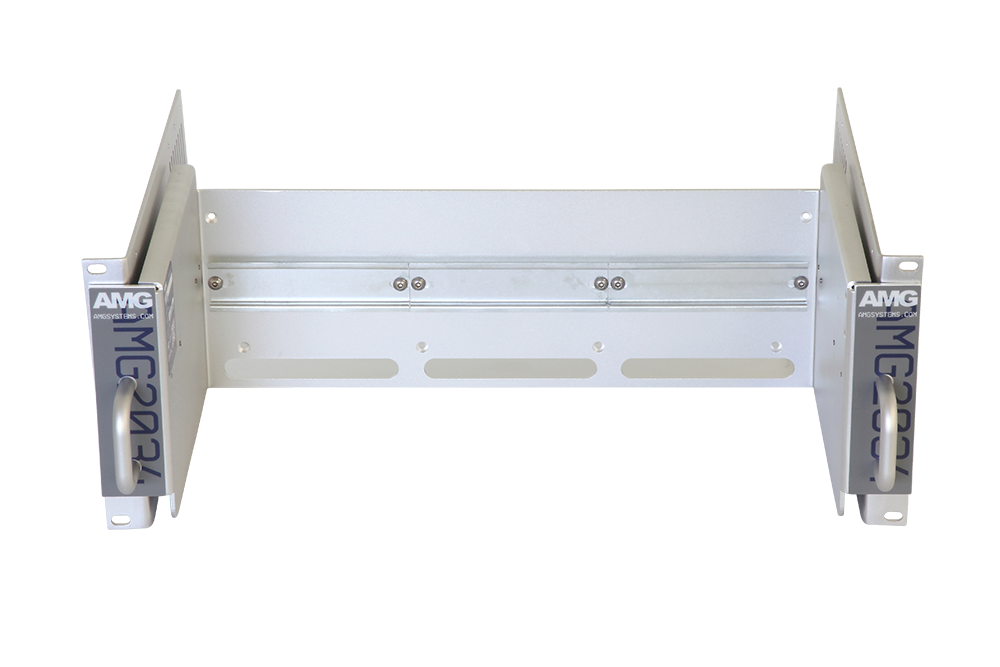

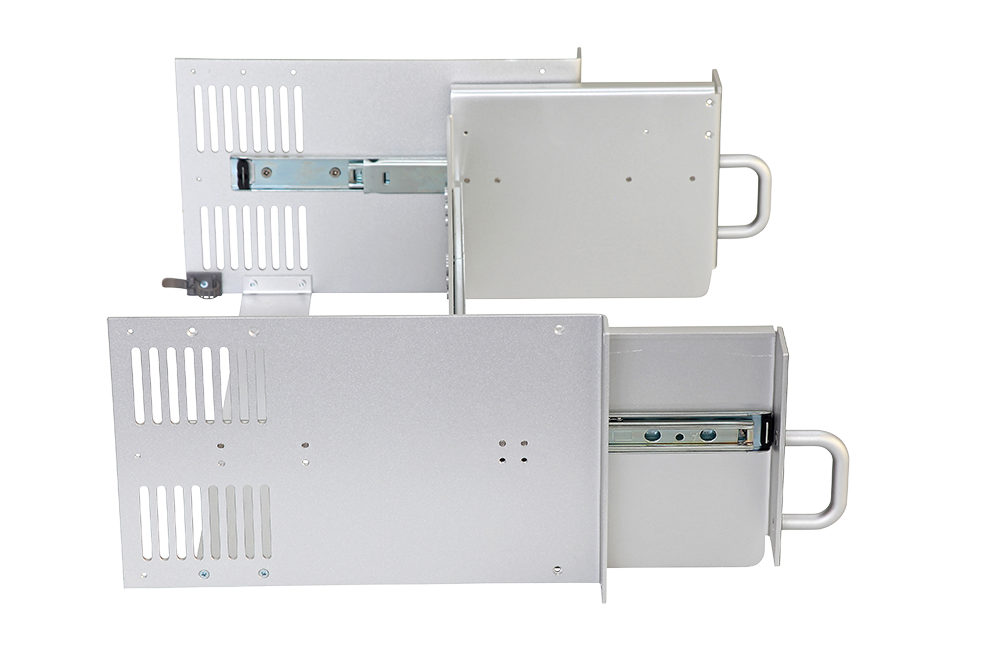

The AMG2034 rack chassis supports all AMG as well as 3rd party DIN rail products and provides an easy to install and maintain solution for mounting DIN rail equipment in 19inch racks and cabinets. Its short depth even allows for installation in small wall mounted 19inch rack enclosures and its heavy duty slide out mechanism ensures maximum ease of installation and future maintenance.

Each rack chassis features removable screw terminal connections for up to 10 devices (depending on product width) and occupies only 4U of rack space within the equipment cabinet offering a simple and elegant rack mount solution for space restricted installations.

The AMG2034 chassis can be ordered without any power supplies as a pure mounting system only or with fully integrated single or dual redundant mains power supplies with both 12VDC and 56VDC outputs available to support PoE and non-PoE enabled equipment and supports hot-swapable replacement of any DIN rail mounted units.

The single or dual integrated power supplies support a wide 90-264VAC input range and provide 12VDC @ 100W and/or 56VDC @ 1000W to power the installed units.

Subrack Height
4U
MTBF (Hours)
250000
Power Consumption (W)
0
Power Inputs
0
Heat Dissipation at Max Load (BTU/h)
0
Operating Temperature
-40°C to +70°C
Storage Temperature
-40°C to +85°C
Recommended PSUs
AMGPSU-I12-P24 (24W 12VDC)
AMGPSU-I12-P54 (54W 12VDC)
AMGPSU-I24-P36 (36W 24VDC)
AMGPSU-I24-P60 (60W 24VDC)
AMGPSU-I48-P60 (60W 48VDC)
AMGPSU-I48L-P120 (120W 48VDC)
AMGPSU-I48-P120 (120W 48VDC)
AMGPSU-I48-P240 (240W 48VDC)
AMGPSU-I48-P480 (480W 48VDC)
Product Class
Industrial Grade
Warranty
AMG Lifetime Warranty
Dimension Drawing (mm)



Dimensions
Width = 482 (mm) / 18.98 (in)
Depth = 328 (mm) / 12.91 (in)
Height = 178 (mm) / 7.01 (in)
3D Model

If the 3D model fails to load click the full screen icon (four arrows) in the top right corner.

Variants
