SFP-ENC-1G-P
Secure-Net™ Encryption SFP Carrier, Factory Pre-Configured Pair, 128-Bit IPsec Encryption, 100Mb / 1Gb SFP Speed Support
Features
- Compatible with most MSA compliant 100 or 1000BASE-FX SFP Ports
- -20°C to +85°C case temperature maintains performance in challenging environmental conditions
- Supports speeds of 100Mbps or 1Gbps depending on the installed SFP module and SFP port
- Plug-and-play solution for easy, rapid deployment
- Full wire speed encryption (up to 1Gbps)
- 128-bit AES-GCM-ESP encryption
- End-to-end static transport mode IPsec encryption
- Complete out-of-band management ensures the highest levels of security with no access to the configuration of the Secure-Net™ device from within the network or from its local host device
- Industry standard Small Form-Factor Pluggable (MSA compliant)
- Lower total cost of ownership compared to existing alternative solutions
- AMG 1 Year Support Warranty (can be extended for an additional charge)
Product Status
Active
The AMG Secure-Net™ SFP carrier is a plug-and-play SFP based IP-level network security device that encrypts traffic over any IP network.
The unit operates as an SFP carrier, capable of hosting most standard MSA compliant 100Mb or 1Gb SFP modules. The Secure-Net™ SFP carrier transparently envelopes a large variety of SFPs, enabling full reuse of existing equipment and easy deployment over multiple infrastructure types, including both fiber & copper lines.
The SFP carrier is easily installed into standard MSA compatible SFP ports of AMG switches and media converters as well as 3rd party devices such as switches, routers and NVR’s, eliminating the use of external power and reducing space and cabling expenses.
The Secure-Net™ SFP carrier supports end-to-end static IPsec in transport mode for highly secured network links in both point-to-point as well as multipoint deployments.
To provide the highest levels of security the Secure-Net™ SFP carrier configuration can only be changed using an external programmer and cannot be changed via the host device or using in-band management.
Product Features

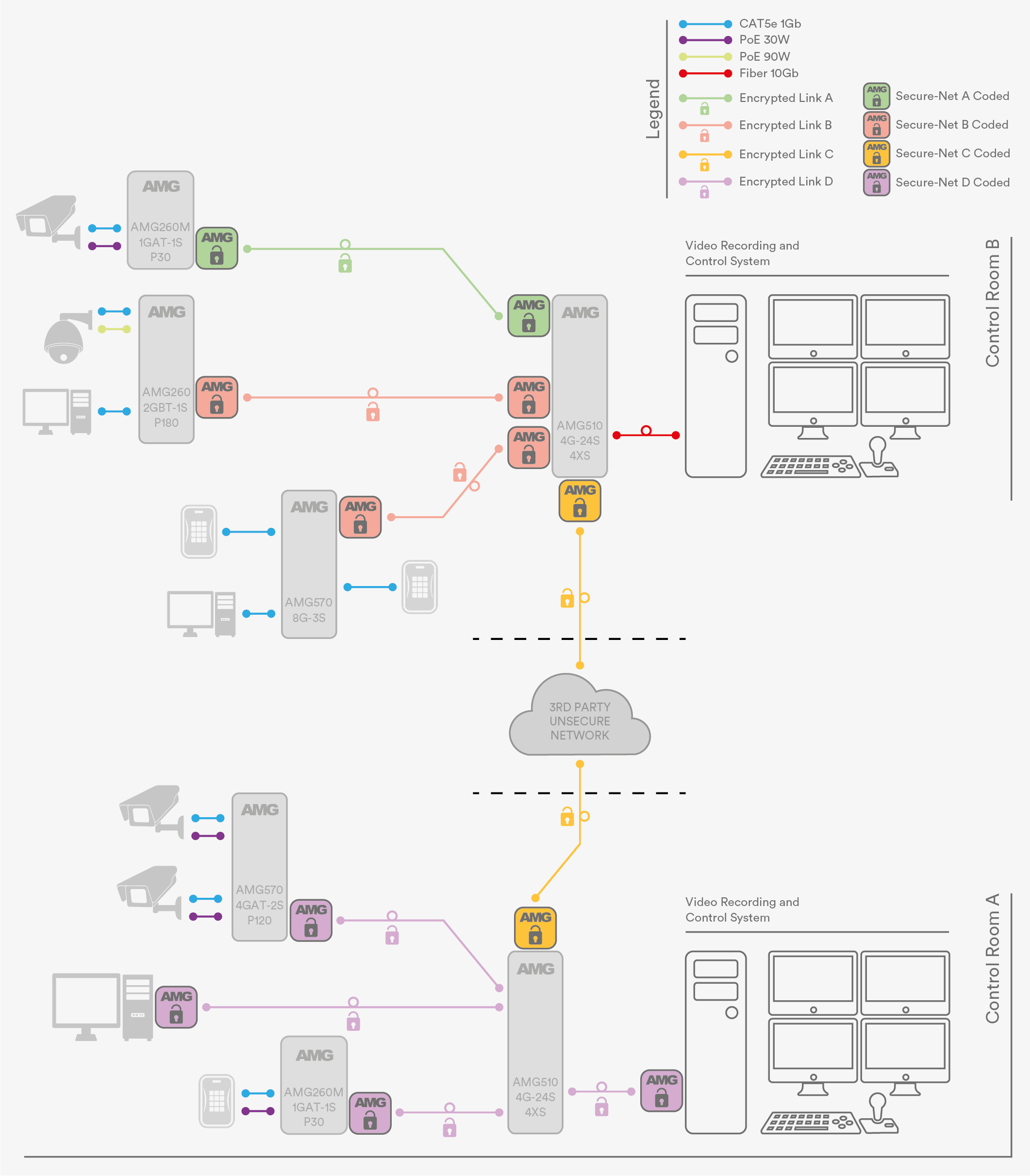

Application Diagram
MTBF (Hours)
10869565
Power Consumption (W)
1.2
Power Inputs
1
Input 1 Voltage
3.3 VDC From SFP Port
Heat Dissipation at Max Load (BTU/h)
4
Operating Temperature
-20°C to +85°C (SFP Case)
Storage Temperature
-40°C to +85°C
IP Rating
IP20
Product Class
Industrial Grade
Warranty
AMG 1 Year Warranty
Compliance
NDAA Compliant
TAA Compliant

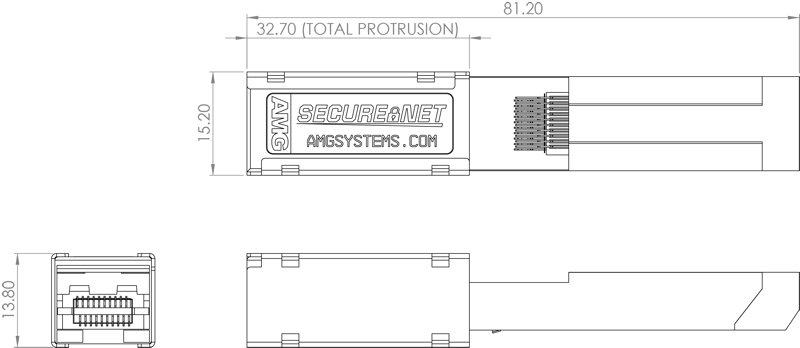

Dimension Drawing (mm)
Dimensions
Width = 15 (mm) / 0.59 (in)
Depth = 81 (mm) / 3.19 (in)
Height = 14 (mm) / 0.55 (in)
Depth = 81 (mm) / 3.19 (in)
Height = 14 (mm) / 0.55 (in)
