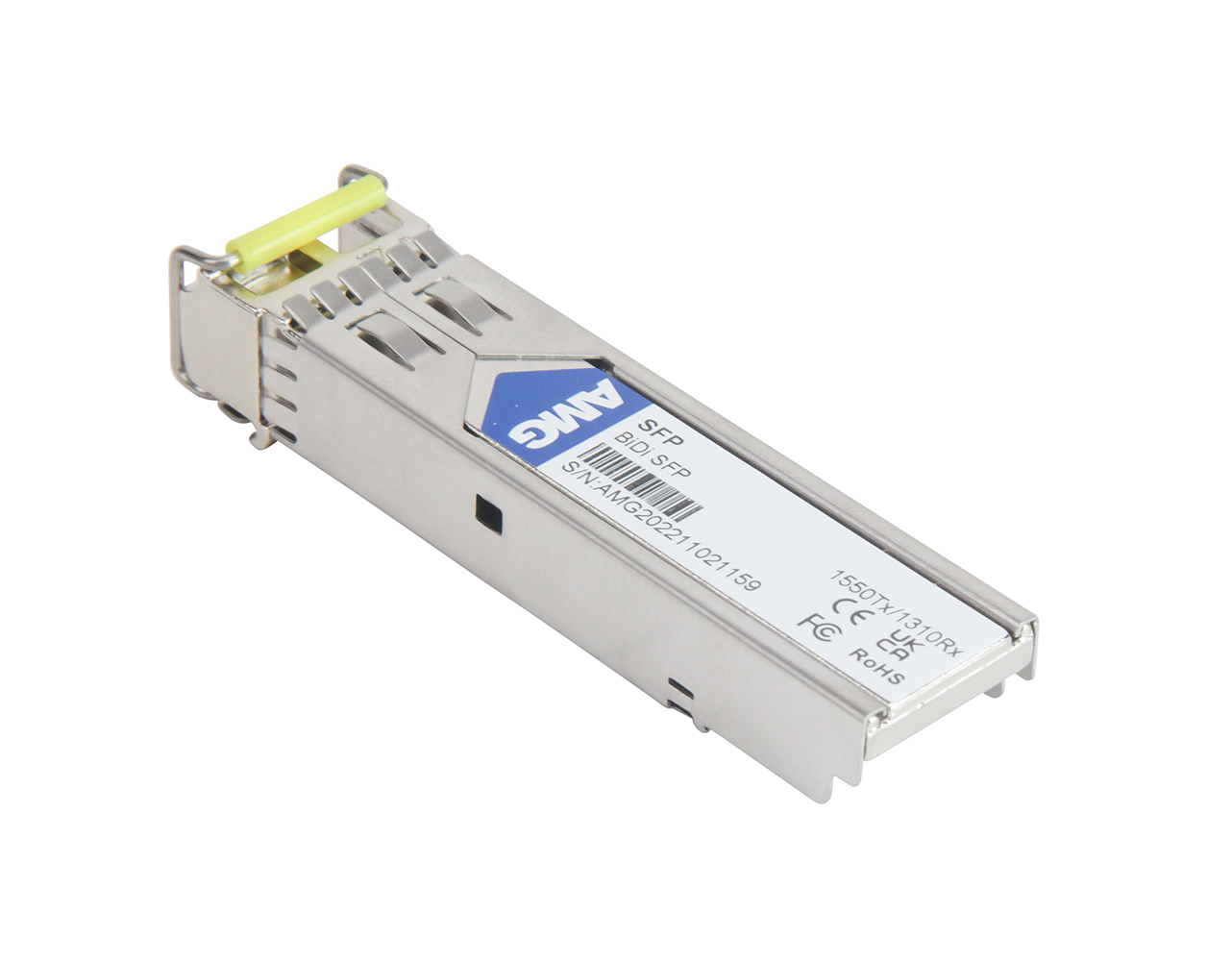

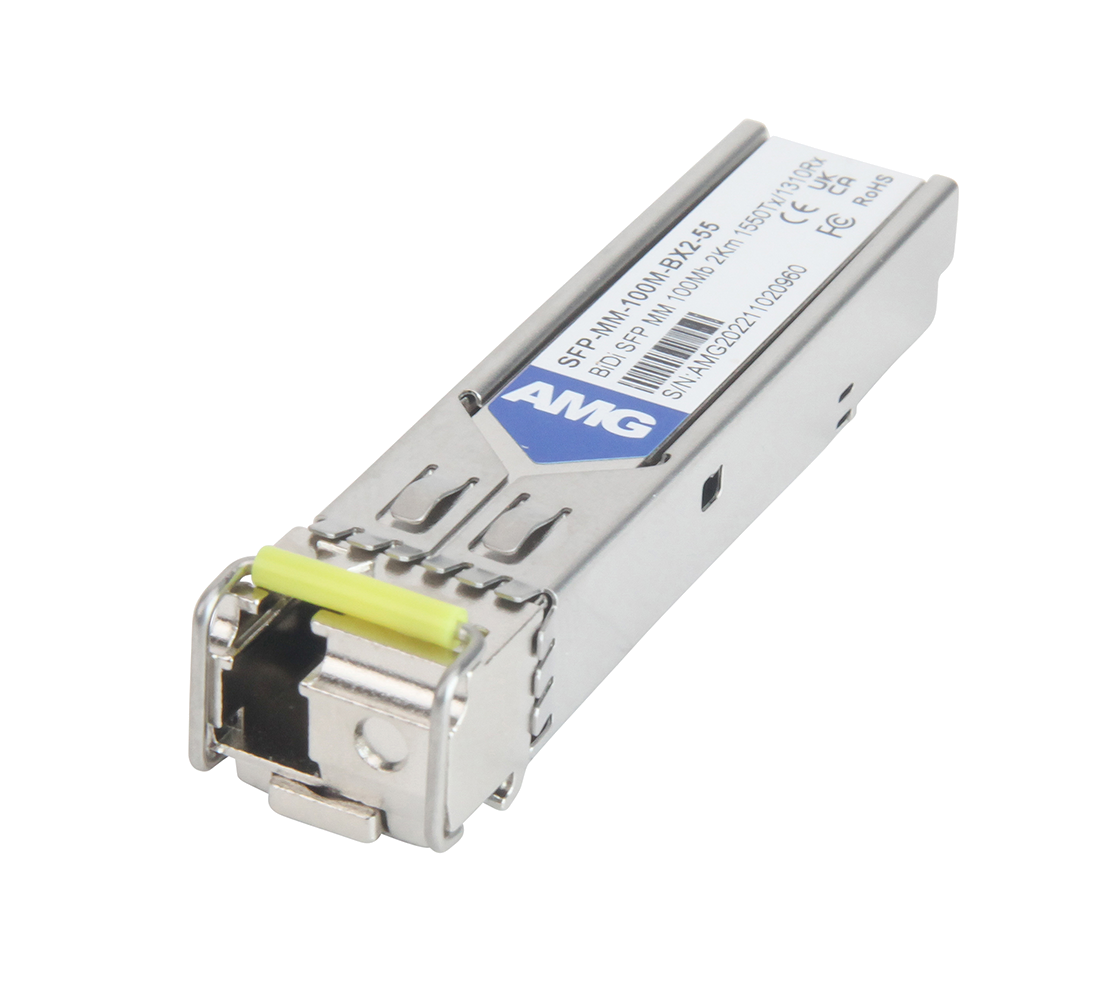

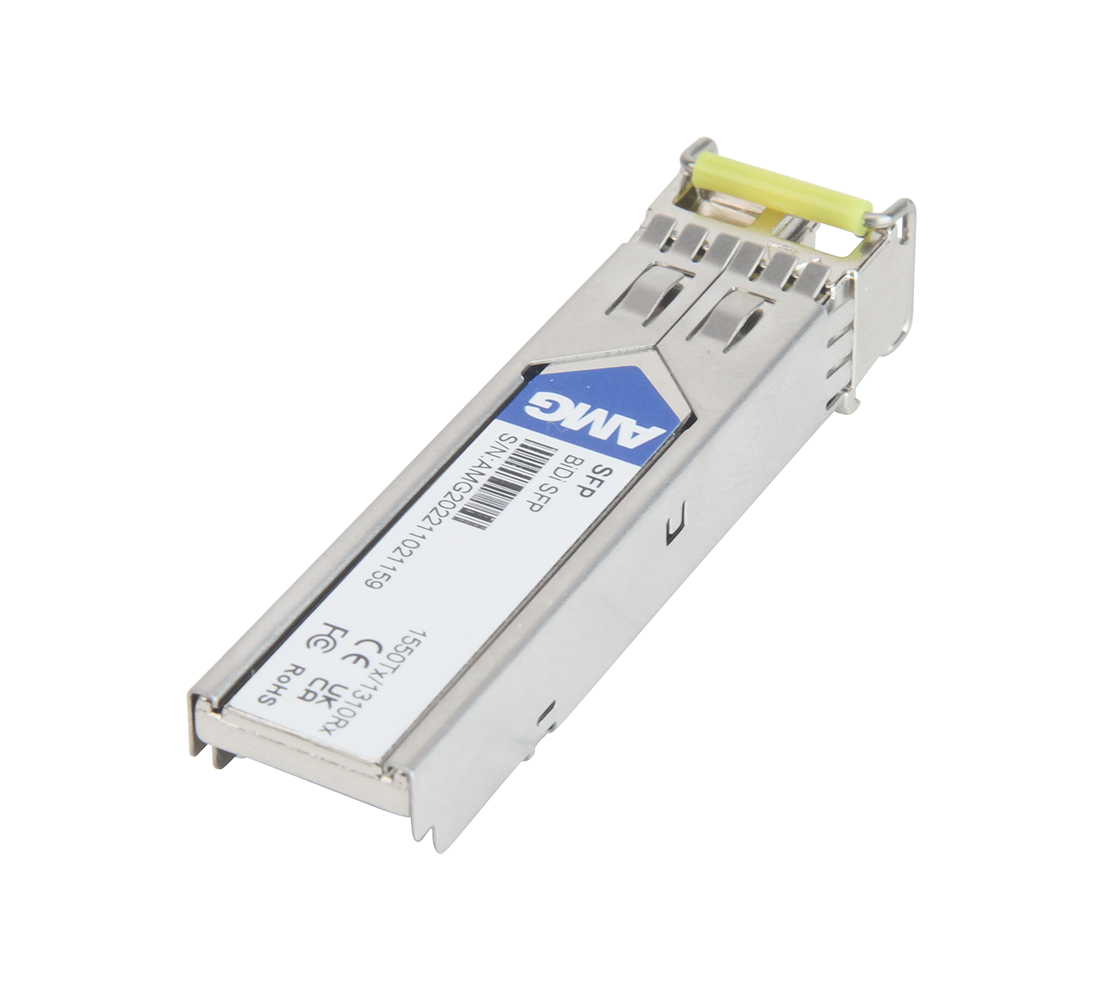

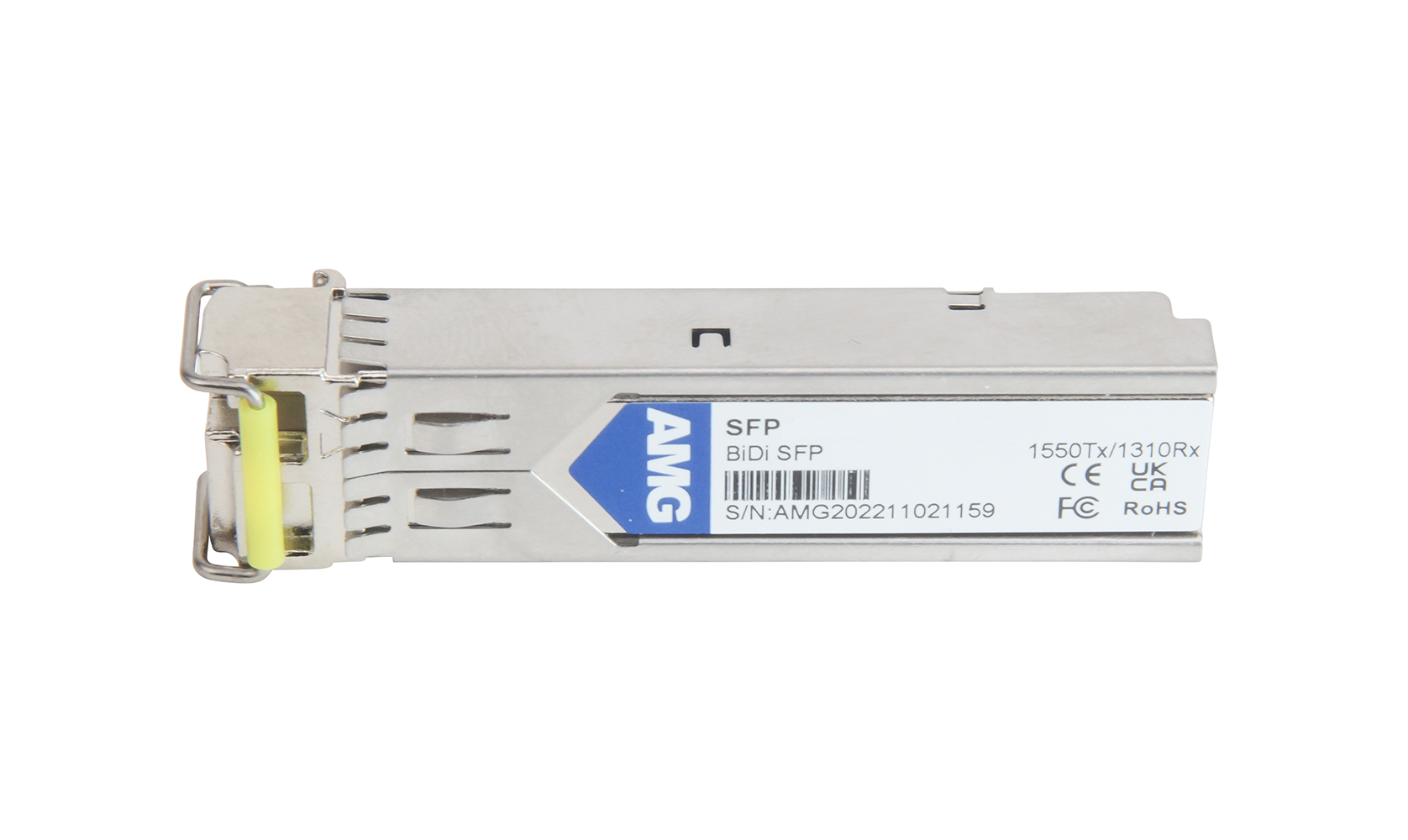

SFP-MM-100M-BX2-55
5060811142141
SFP Multimode, 100Mb, 1 Fiber, 2Km, LC Connector, 1550nm Tx / 1310nm Rx, -40°C to +85°C, DDM (Mates With SFP-MM-100M-BX2-31)
Features
- Compatible with most 100BASE-X SFP Ports
- Supports Ethernet speeds of up to 100Mbps
- Hot pluggable design allows for easy field replacement or upgrades
- Digital Diagnostic Monitoring (DDM) included on all optical models
- Distances up to 2Km (Multimode Fibre)
- INF-8074 and SFF-8472 compliant
- Low EMI metal housing with excellent ESD protection
- Programmed and tested in the UK
- Industry standard Small Form-Factor Pluggable (MSA compliant)
- AMG Lifetime Support Warranty
Product Status
The AMG SFP-100M series are industrial 100Mb Ethernet SFP’s offering support for multiple cable types including copper (Cat5 or higher) as well as Multimode or Singlemode optical fibre.
The units are compatible with most 100BASE-X SFP ports on Ethernet switches and media converters¹ and feature industry standard LC connectors for fibre models and RJ45 connectors for copper models.
The SFP modules are a perfect solution for extending the capability of SFP enabled Ethernet devices to support links from remote locations which are beyond the normal 100m (328ft) distance limit of copper Ethernet standards.
Each optical fibre model supports full Digital Diagnostic Monitoring (DDM) to provide the user with valuable information on critical operating parameters such as device temperature, Tx and Rx optical power levels, speed, optical wavelength as well as device part code, serial number and manufacturer data.
SFP Type
MM (Multimode)
Speed
100Mb
SFP Interface
100BASE-X SFP
Distance (km)
2
Distance Type
BX (100Mb/1Gb/2.5Gb/10Gb 1 Fibre)
Fiber Type
MM (Multimode)
Fiber Interface
Single Fiber
Tx Wavelength
1550nm
Rx Wavelength
1310nm
Fiber Connector
1x LC
Optical Loss (Max)
15dB
Standards (SFP)
IEEE 802.3u (100Base-FX)
INF-8074 (SFP Transceiver)
SFF-8472 (Diagnostic Monitoring Interface)
MSA (Multi-Source Agreement)
Laser Safety
FDA 21CFR 1040.10
FDA 21CFR 1040.11
EN/IEC 60825-1
EN/IEC 60825-2
MTBF (Hours)
250000
Power Consumption (W)
1
Power Inputs
1
Input 1 Voltage
3.3 VDC From SFP Port
Heat Dissipation at Max Load (BTU/h)
3
Operating Temperature
Storage Temperature
-40°C to +85°C
IP Rating
IP40
Product Class
Industrial Grade
Warranty
AMG Lifetime Warranty
Compliance
NDAA Compliant
TAA Compliant
Traffic Certification
NEMA TS2
Dimension Drawing (mm)
Dimensions
Width = 57 (mm) / 2.24 (in)
Depth = 14 (mm) / 0.55 (in)
Height = 12 (mm) / 0.47 (in)
Depth = 14 (mm) / 0.55 (in)
Height = 12 (mm) / 0.47 (in)
