AMG2016

5060811141120

48 VDC, 60W (1.25A) Industrial Power Supply, DIN-Rail Mounting, -40°C to +71°C

Features
  • 90-264VAC Mains Power Input
  • AC/DC Power Module
  • Mounts on Standard 7.5 or 15mm DIN-Rail
  • Adjustable Output Voltage Range
  • High Operating Efficiency
  • Short Circuit Protection
  • Natural Convection Cooling (Fanless Design)
  • Wide Operating Temperature -40 to +71°C
  • AMG 3 Year Support Warranty

Product Status

Obsolete

Alternative Product: AMGPSU-I48-P60

AMG 48VDC Power Supply Series, DIN-Rail mounting. Suits all AMG PoE products, -40°C to +71°C, power de-rated between 51°C to 71°C.

AMG offer a complete range of high quality industrial PoE power supplies suited to the entire AMG industrial PoE product range that require 48-56VDC power input.

These industrial hardened units are DIN rail mounted. The wide ambient operating temperature range permits installation in most out of plant and unconditioned environments, such as those found in intelligent transportation systems or factory automation/industrial control applications. Unconditional line and load protection is provided.

Output Voltage
48 VDC
Output Current
1.25A @ 48 VDC
Output Power
60W
Voltage Trim Range
48 to 55 VDC
Efficiency
>89%
Mounting Type
DIN Rail
MTBF (Hours)
596000
Power Consumption (W)
0
Power Inputs
1
Power Interface
3 Pin Terminal Block
5 Pin Terminal Block
Operating Temperature
-40°C to +71°C
Storage Temperature
-40°C to +85°C
IP Rating
IP20
Input 1 Voltage
85-264 VAC
90-375 VDC
Product Class
Industrial Grade
Warranty
AMG 3 Year Support Warranty

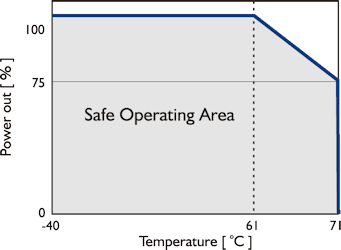

Temperature Derating Curve

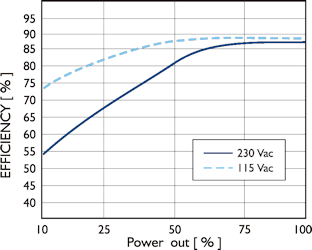

Efficiency Curve

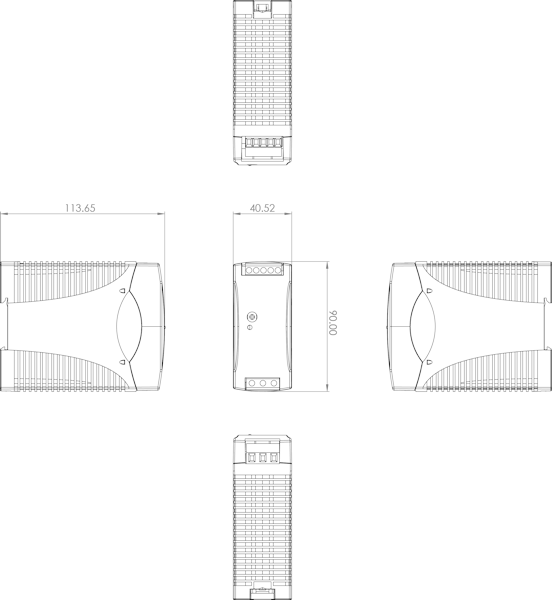

Dimension Drawing (mm)

Dimensions
Width = 40 (mm) / 1.59 (in)
Depth = 114 (mm) / 4.49 (in)
Height = 90 (mm) / 3.6 (in)
3D Model

If the 3D model fails to load click the full screen icon (four arrows) in the top right corner.
