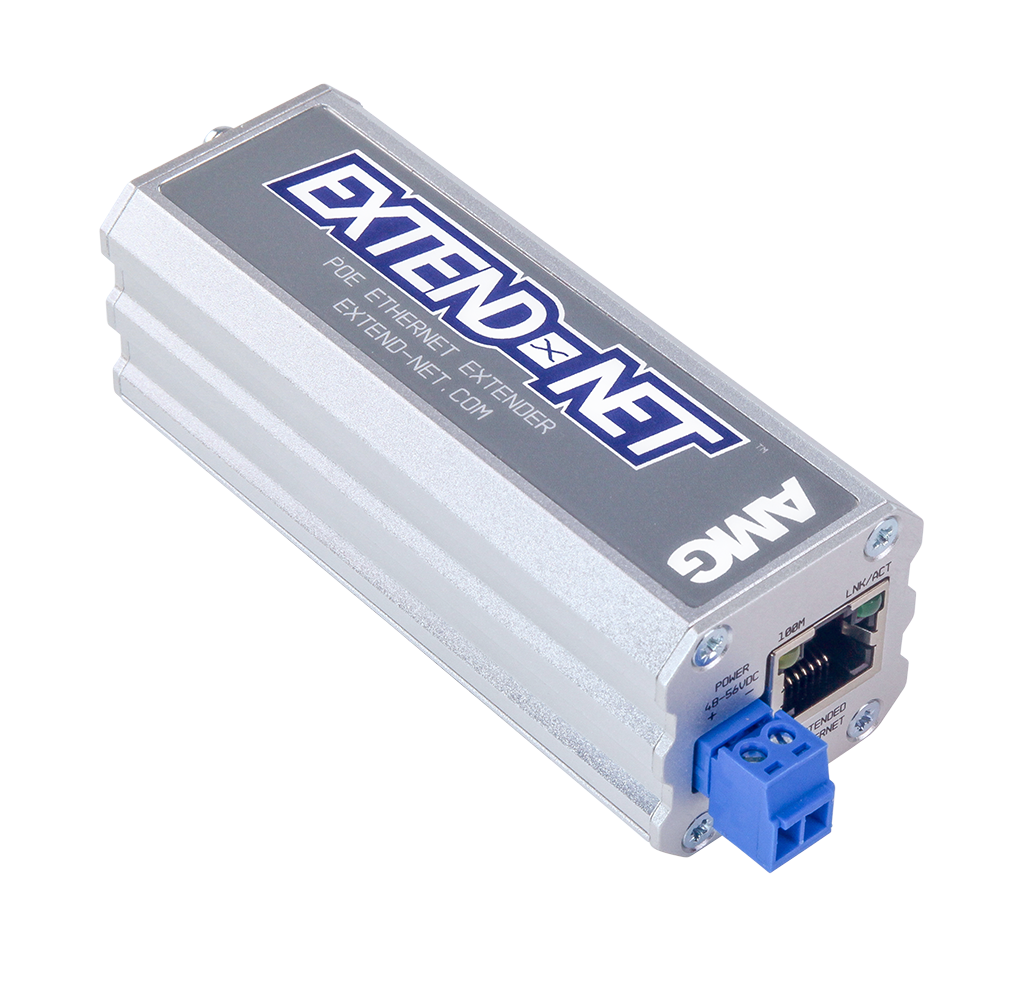

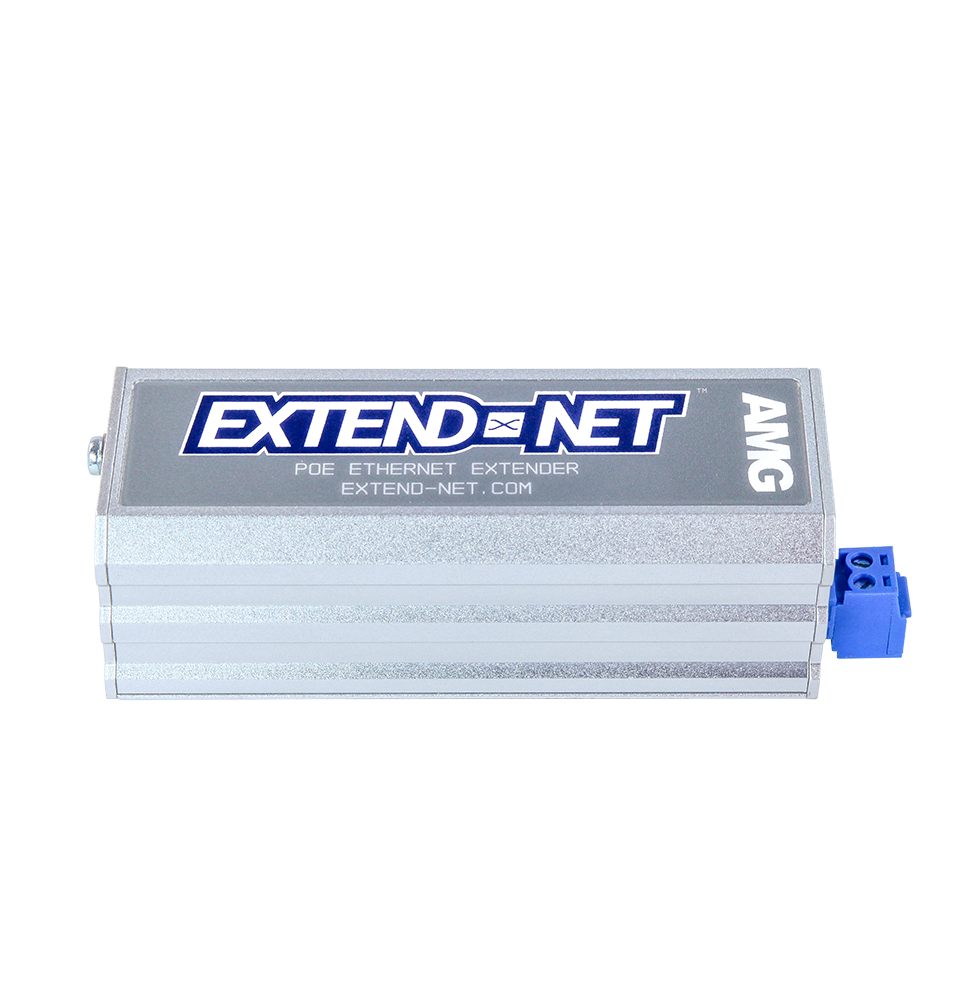

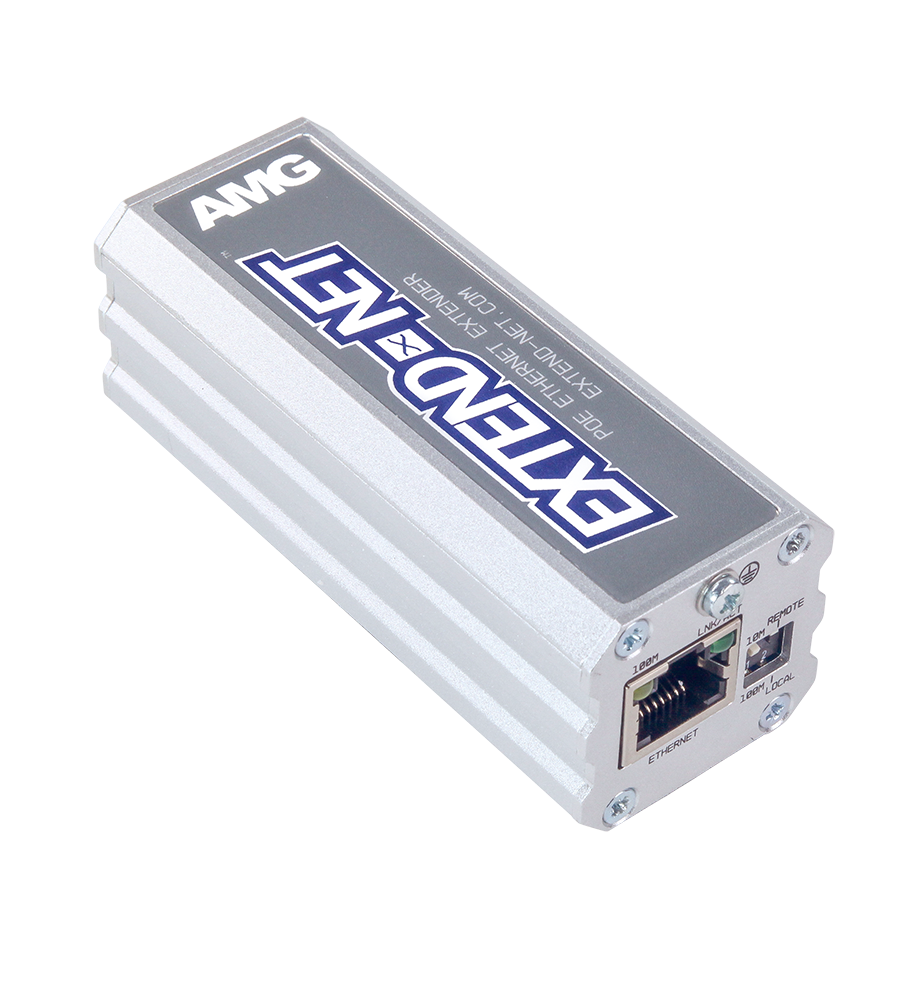

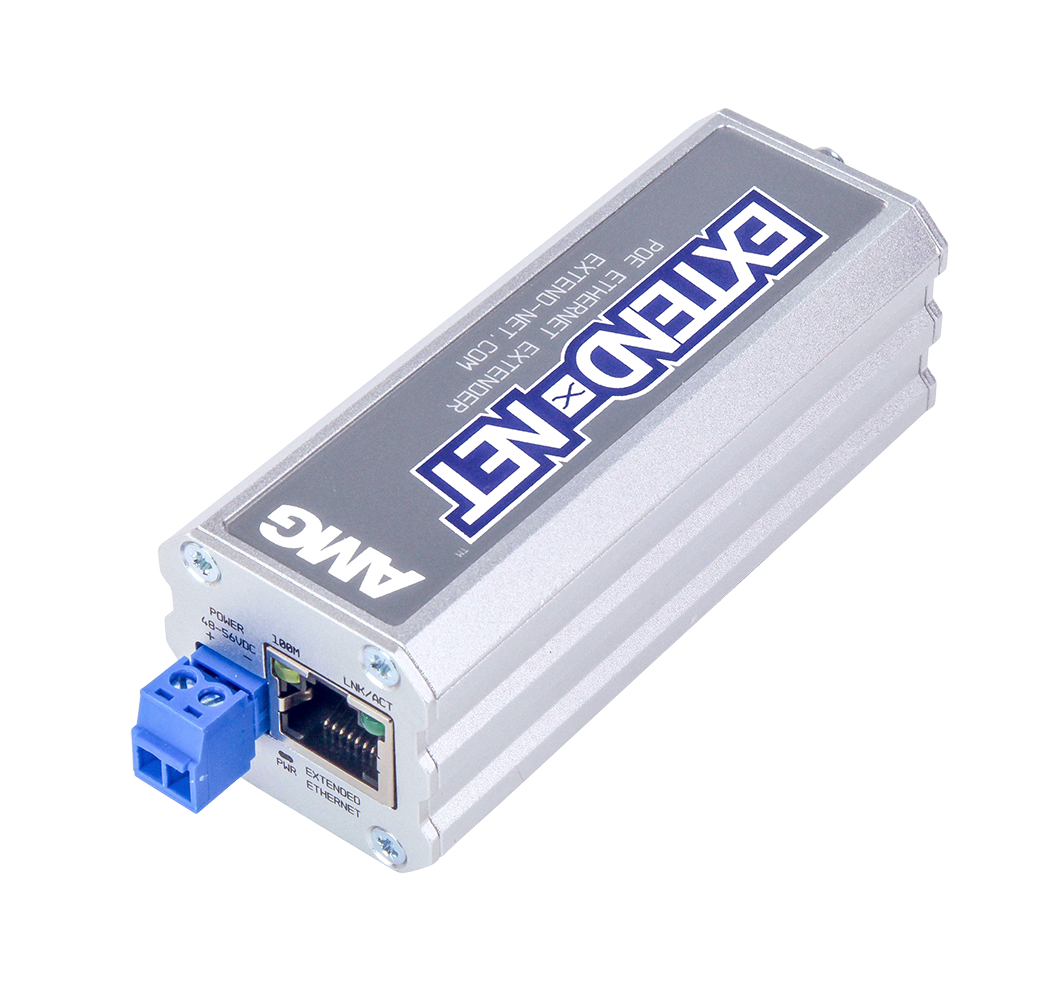

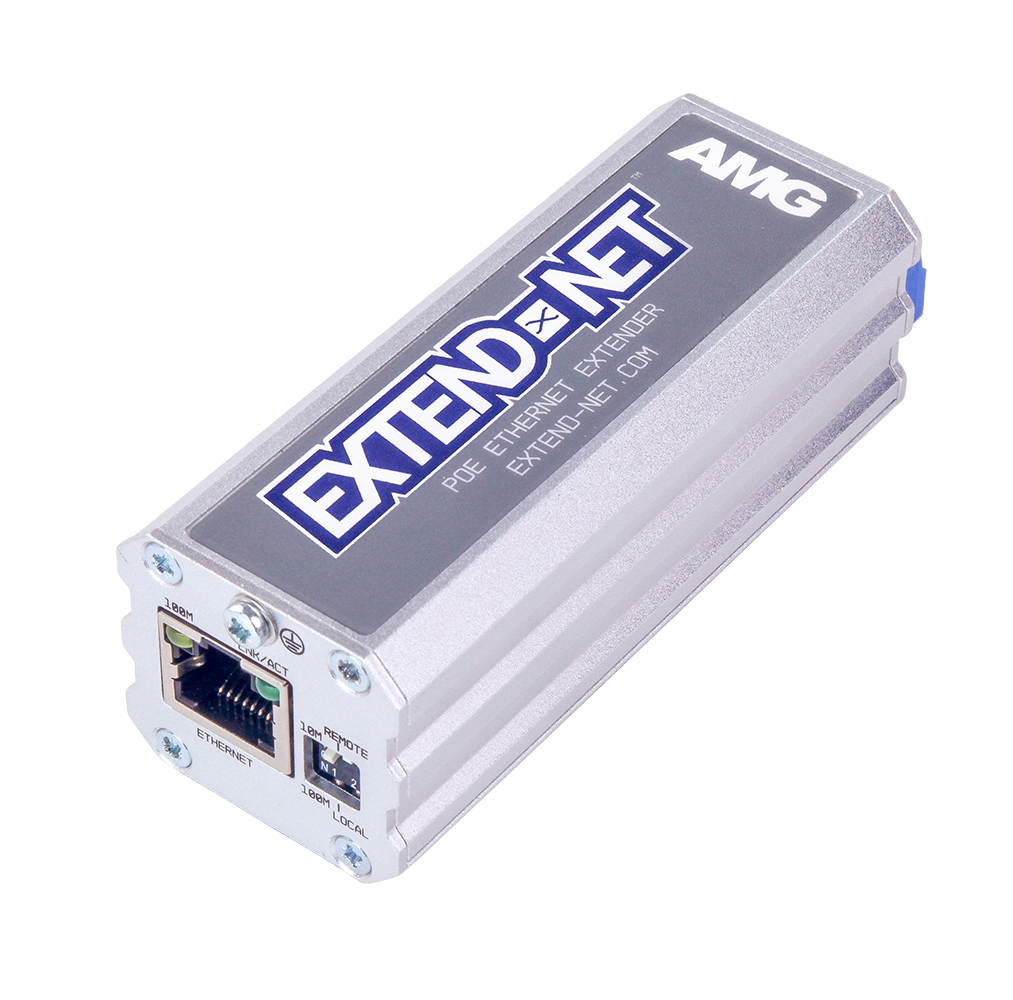

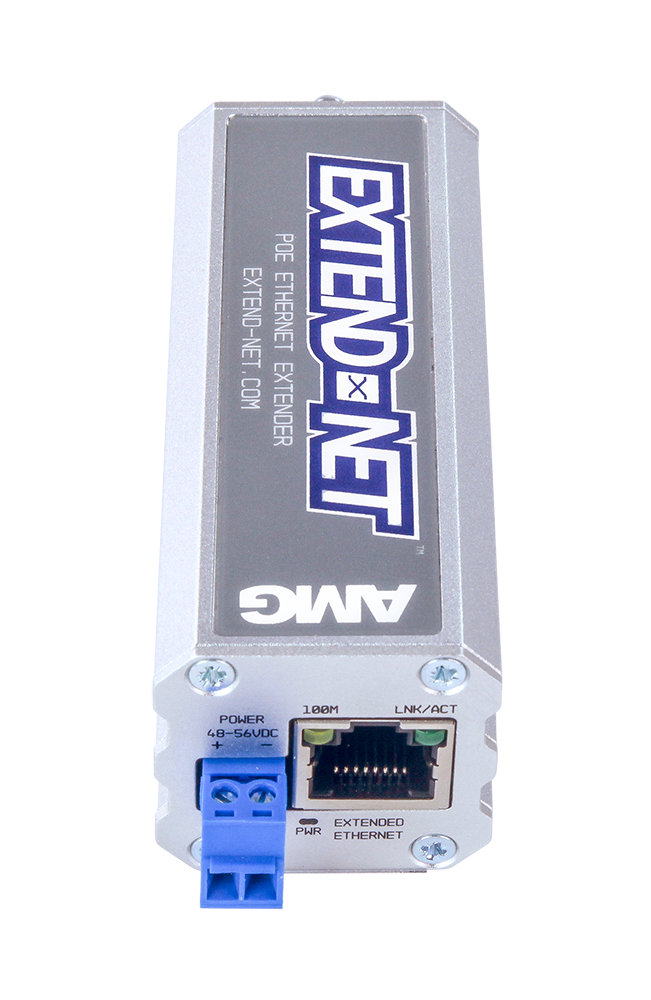

Industrial 1 Port Ethernet Extender Over UTP, 1 x 10/100Base-T(x) RJ45 Port, 1 x Extend-Net™ UTP RJ45 Port, Supports 802.3at/bt 30/60/90W PoE Pass-Through, DIN Rail / Wall Mount, -40°C to +75°C, 24-56VDC Power Input
  • Compact size – ideal for confined spaces, including conduit, camera poles and roadside cabinets
  • -40°C to +75°C temperature maintains performance in extreme conditions

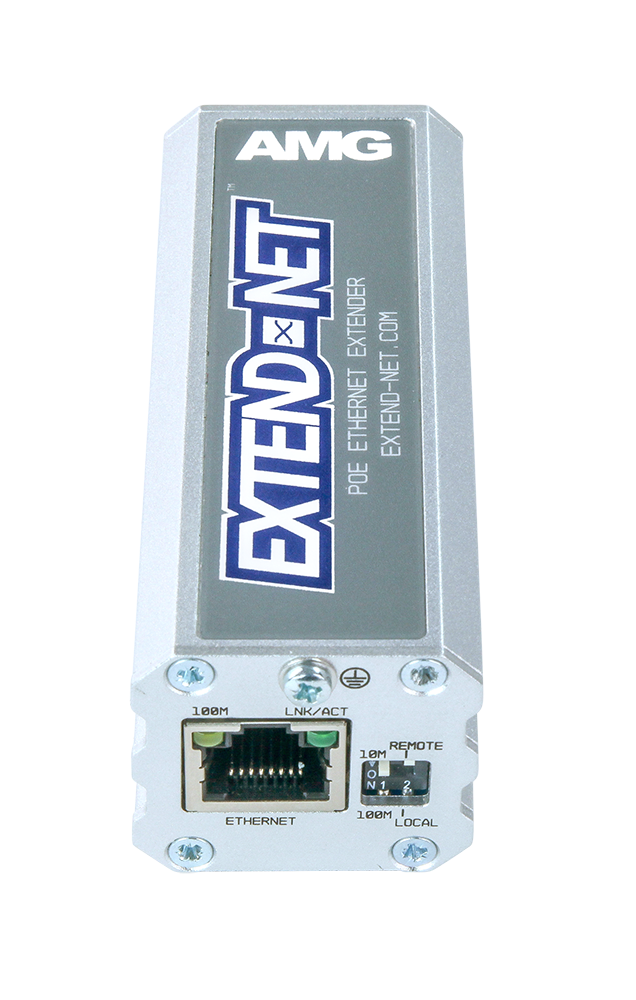

  • DIP switches for Local/Remote & 10/100Mb modes
  • Automatic 1-pair or 4-pair cable selection

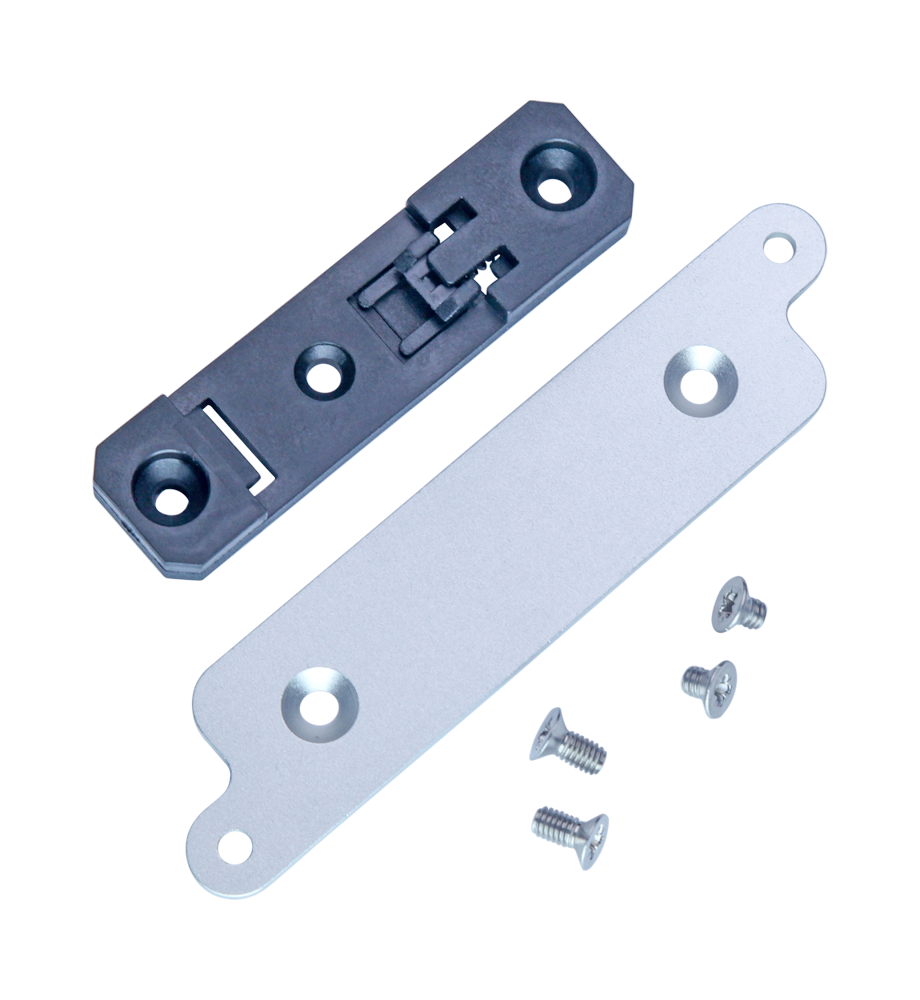

  • Standalone, DIN rail or wall mountable – flexible mounting options are included with every unit
  • Extends Ethernet up to 550m (1,800 ft) at 100Mbps
  • Extends Ethernet up to 1000m (3,280 ft) at 10Mbps
  • Supports 15W, 30W, 60W & 90W PoE Pass-Through
  • Integrated surge protection on Extend-Net™ port
  • Unicast, Multicast & Jumbo Frames are supported along with full symmetrical bandwidth performance
  • Designed in the USA & UK. Manufactured in the United Kingdom
  • AMG Lifetime Support Warranty

Product Status


AMG’s Extend-Net™ industrial Ethernet extenders provide 10/100Mb Ethernet over long distances of coax, 2-wire twisted pair and UTP cables with support for pass-through 30W, 60W & 90W PoE. These single channel models feature coaxial, screw terminal or RJ45 connectors and support distances up to 1Km.

Designed in a compact tube style housing that can be DIN rail or wall mounted using the included accessory brackets, the AMG160 Extend-Net™ series industrial Ethernet Extenders are ideally suited for connecting equipment to Ethernet networks over long distances using standard Coax & UTP cables.

Distances up to 550m @ 100Mb speed and 1000m @ 10Mb speed are possible over standard cables.

The AMG160 Coax and 2-Wire series support IEEE802.3af 15.4W and IEEE802.3at 30W PoE pass-through while the UTP series additionally support IEEE802.3bt 90W PoE pass-through and are suitable for powering the latest PoE devices over a wide industrial operating temperature range at extended distances.

A 24-56VDC local power input is provided for instances where local power is available and the maximum possible PoE level is required at the remote device but this is not required for operation when used with a PoE enabled edge device such as an IP camera as the units also support pass-through PoE powering.

Product Features

Application Diagram

MTBF (Hours)
Power Consumption (W)
Power Inputs
Power Interface
2 Pin Removable Terminal Block
Input 1 Voltage
24-56 VDC
PoE Pass-Through
Heat Dissipation at Max Load (BTU/h)
Operating Temperature
-40°C to +75°C
Storage Temperature
-40°C to +85°C
Recommended PSUs
AMGPSU-I24-P36 (36W 24VDC)
IP Rating
Product Class
Industrial Grade
AMG Lifetime Warranty
Ethernet Standards (Media Converters)
IEEE 802.3i (10Base-T)
IEEE 802.3u (100Base-TX)
IEEE 802.3af (15W PoE)
IEEE 802.3at (30W PoE+)
IEEE 802.3bt (60 & 90W PoE)
Jumbo Frames
10K bytes
100Mb RJ45 Ports
550 Meters (1
800 ft) @ 100Mb
1000 Meters (3
280 ft) @ 10Mb
LED Indicators (Extend-Net)
Ethernet Link / Activity
Ethernet 100Mb Speed
Extend-Net Link / Activity
Extend-Net 100Mb Speed
DIP Switch Type
2 Position
DIP Switch Function
10Mb or 100Mb Mode
Remote or Local Operation
Mounting Type
DIN Rail
Wall Mount
Overload Current
High Impedance PoE Pass-Through with Start-up Voltage Detection & Current Limiting
RJ45 Port(s) Feature
1.5 kV Isolation Protection
Extend-Net Ports
1 x RJ45
PoE Pass-Through
NDAA Compliant
TAA Compliant
Traffic Certification
Dimension Drawing (mm)

Width = 89 (mm) / 3.5 (in)
Depth = 35 (mm) / 1.38 (in)
Height = 32 (mm) / 1.26 (in)
