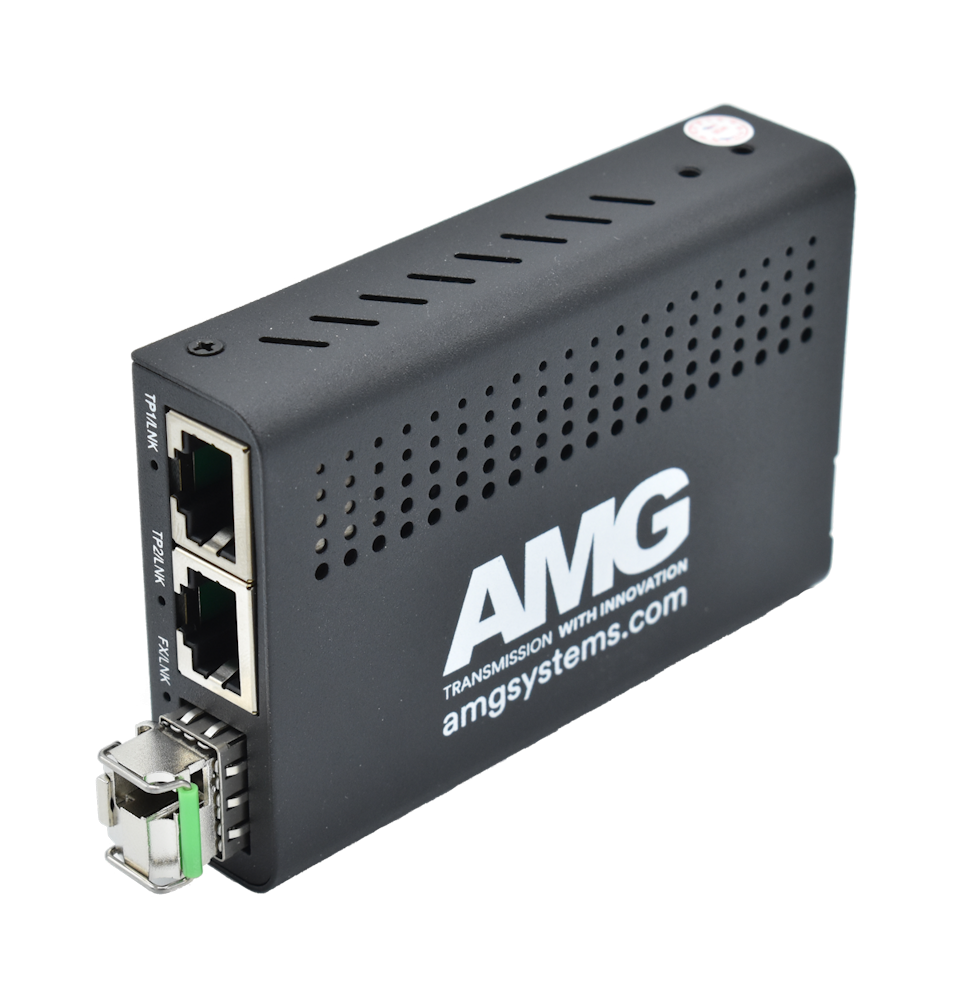

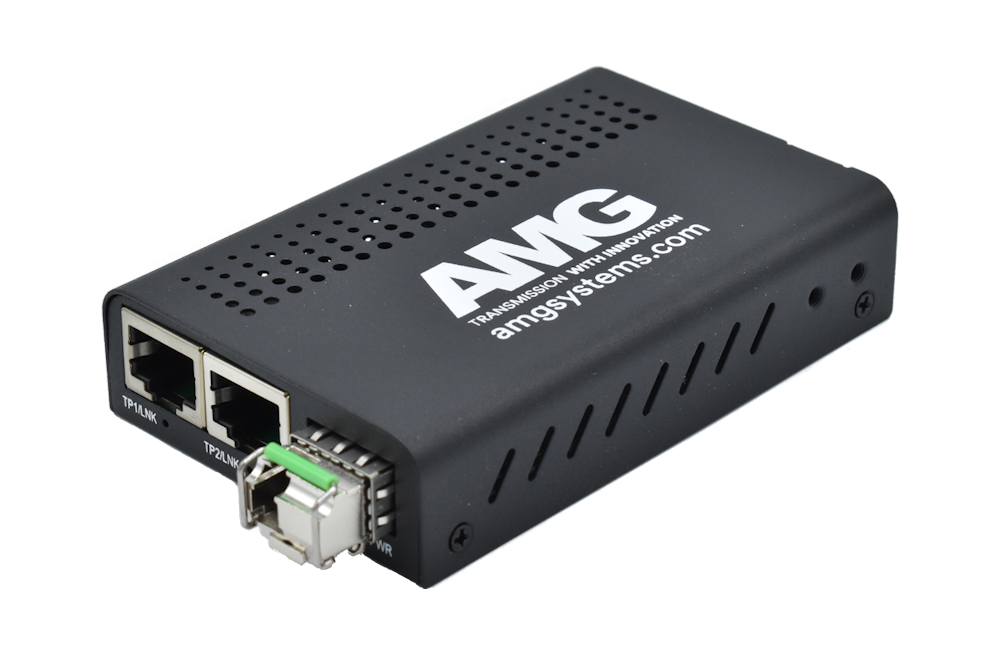

SFP Media Converter, 2 Port 10/100/1000Base-T(x) RJ45, 1 Port 1000Base-Fx, Multimode, 1 Fibre, 1550nm, B-Side, LC Connector, Multirate Support, Commercial Grade 0-50⁰C, Mini, EU, US or UK Type Power Supply Included
Ultra Compact size – ideal for confined spaces, and provides highly cost effective solutions
Auto-Negotiation – automatically determines the best connection speed

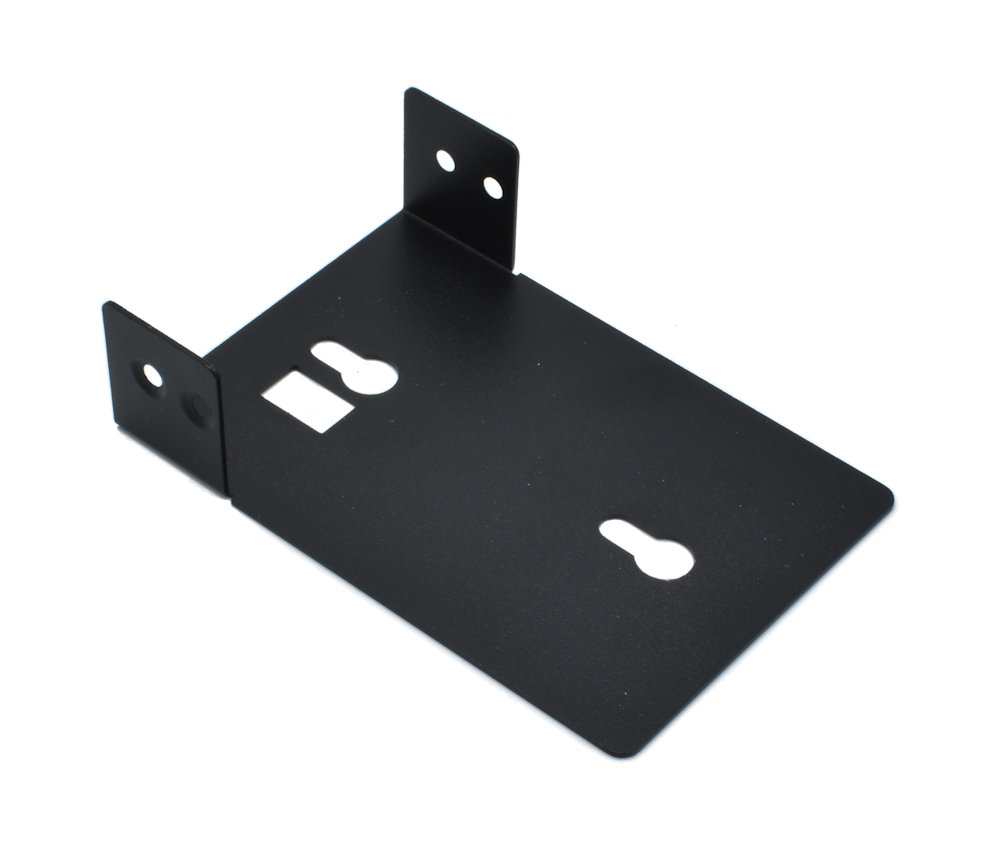

Wall mountable using the included wall bracket
Rack mountable using the optional 19 inch 1U rack
100Mb/1Gb SFP port supports singlemode and multimode, single or dual fibre options up to 120Km (ordered separately)
Supports Jumbo Frames up to 9.6K bytes
Intelligent features supported including link fault pass-through, SFP reset and many others.
AMG 3 Year Support Warranty
AMG’s 210M series mini Ethernet media converters provide flexible options for 100Mbps, Gigabit or 10 Gigabit Ethernet communication across fibre via the SFP or SFP+ port with intelligent configuration features such as link fault pass-through.
Designed in an ultra compact housing, these mini media converters are ideally suited for connecting equipment to Ethernet networks over long distances using all types of fibre through the integrated SFP or SFP+ port.
User selectable DIP switches allow for configuration of advanced features such as link fault pass-through, port isolation, jumbo frames, automatic laser shutdown and SFP speed selection.
The 10Gb models support 1G, 2.5G, 5G & 10G modes as well as 3R functions for equalization amplification, clock extraction and integer regeneration for the highest 10G data performance with low transmission jitter.
The mini media coverters can be used standalone, wall mounted using the included mounting kit or can be installed within an AMG210C rack where up to 12 units can be located within a 1U 19inch rack space. The rack solution provides an ultra high density rack mount option.
PSUs are included with each unit and SFPs can either be included (depending on model ordered) or can be ordered separately allowing for selection from AMG’s extensive range of SFP(+) modules to suit any application.
