AMG2012

5060811141144
48 VDC, 240W (5A) Industrial Power Supply, DIN-Rail Mounting, -40°C to +71°C
Features
  • Auto Select 115/230 VAC Input Voltage
  • AC/DC Power Module
  • Mounts on Standard 7.5 or 15mm DIN-Rail
  • Adjustable Output Voltage Range
  • High Operating Efficiency
  • Short Circuit Protection
  • Natural Convection Cooling (Fanless Design)
  • Wide Operating Temperature -40 to +71°C
  • AMG 3 Year Support Warranty

Product Status

Obsolete

Alternative Product: AMGPSU-I48-P240

AMG 48VDC Power Supply Series, DIN-Rail mounting. Suits all AMG PoE products, -40°C to +71°C, power de-rated between 51°C to 71°C.

AMG offer a complete range of high quality industrial PoE power supplies suited to the entire AMG industrial PoE product range that require 48-56VDC power input.

These industrial hardened units are DIN rail mounted. The wide ambient operating temperature range permits installation in most out of plant and unconditioned environments, such as those found in intelligent transportation systems or factory automation/industrial control applications. Unconditional line and load protection is provided.

Output Voltage
48 VDC
Output Current
5A @ 48 VDC
Output Power
240W
Voltage Trim Range
47 to 56 VDC
Efficiency
>90%
Mounting Type
DIN Rail
MTBF (Hours)
568000
Power Consumption (W)
0
Power Inputs
1
Power Interface
3 Pin Terminal Block
6 Pin Terminal Block
Operating Temperature
-40°C to +71°C
Storage Temperature
-40°C to +85°C
IP Rating
IP20
Input 1 Voltage
90-132 VAC / 180-264 VAC (Auto Select)
210-375 VDC
Product Class
Industrial Grade
Warranty
AMG 3 Year Support Warranty

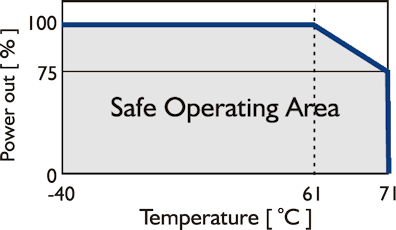

Temperature Derating Curve

Efficiency Curve

Dimension Drawing (mm)

Dimensions
Width = 83 (mm) / 3.29 (in)
Depth = 124 (mm) / 4.87 (in)
Height = 124 (mm) / 4.9 (in)
3D Model

If the 3D model fails to load click the full screen icon (four arrows) in the top right corner.
