AMG150-2GAT-P60

5060811140260
Industrial 2 Port PoE Injector, 2 x 10/100/1000Base-T(x) RJ45 Ports With 802.3at 30W PoE, Can Be 1 x In & 1 x 30W Out Or 2 x 30W Out, DIN Rail / Wall Mount, -40°C to +75°C, 50-56 VDC Power Input
Features
  • Compact size – ideal for confined spaces, including camera poles and roadside cabinets
  • -40°C to +75°C temperature maintains performance in extreme conditions
  • Plug & Play – no need for any user configuration
  • DIN rail mountable – quick to install and remove for maintenance
  • Dual PoE ports support 2 PD devices simultaneously
  • Gigabit multirate RJ45 ports support all standard 10/100/1000Mb speeds
  • Dual redundant power inputs with fault relay
  • Auto-Negotiation (802.3u) automatically determines the best connection speed
  • Supports 15W and 30W PoE
  • Designed in the USA & UK. Manufactured in the United Kingdom
  • AMG Lifetime Support Warranty

Product Status

Active

Designed in a compact DIN rail or wall mount housing, the AMG150 series industrial Power over Ethernet (PoE) injectors are ideally suited for providing power to remote edge network devices.

Available in both IEEE802.3at 30W or IEEE802.3bt 60/90W they are suitable for powering the latest high powered PoE devices over a wide industrial operating temperature range.

The unique AMG dual active port PoE function enables the units to operate as standard single channel injectors where power is supplied out from a single port or provide PoE power out of both ports simultaneously allowing 2 devices to be powered.

Fitted with dual redundant power inputs and power failure alarm relay ensures maximum operating reliability and the highest levels of performance.

A wide range of models are available to suit all design requirements.

PSUs need to be ordered separately.
Product Features

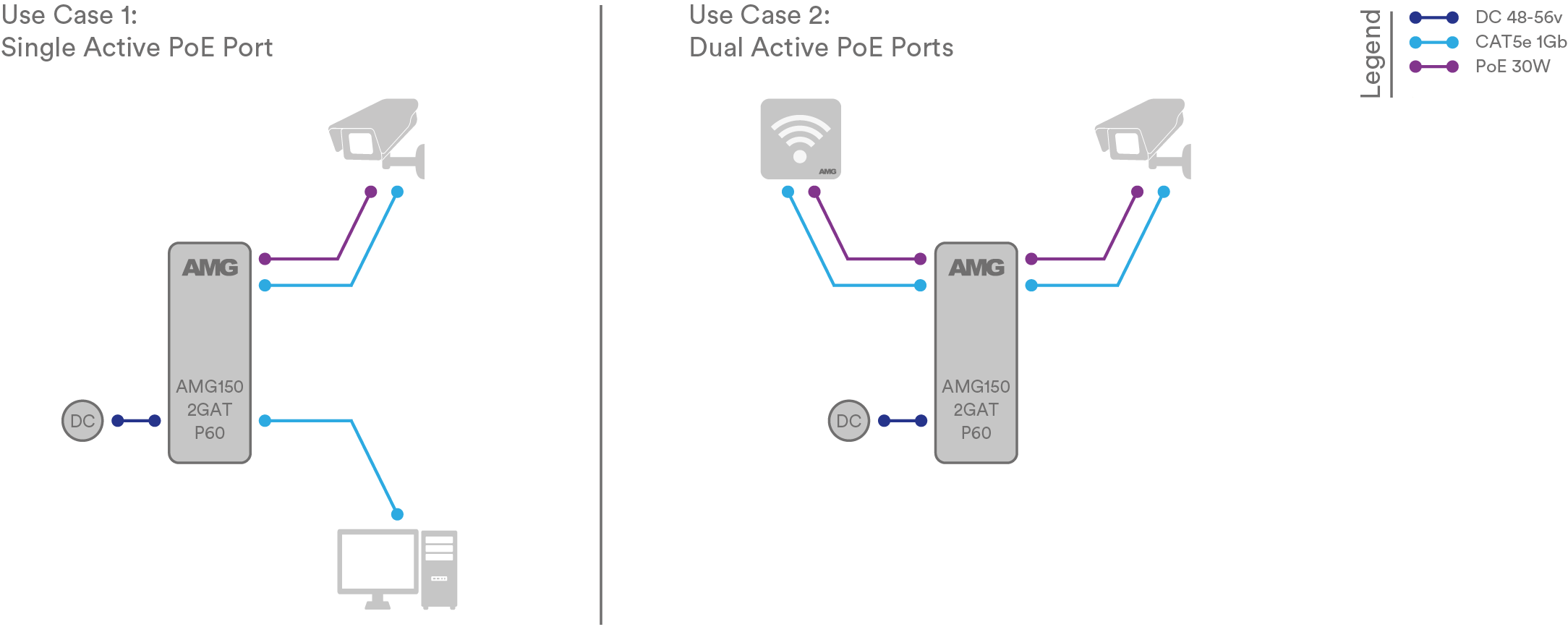

Application Diagram

1Gb RJ45 Ports
2
30W PoE Ports
2
MTBF (Hours)
2332497
Power Consumption (W)
2
Power Inputs
2
Power Interface
6 Pin Removable Terminal Block
Input 1 Voltage
50-56 VDC
Input 2 Voltage
50-56 VDC
Heat Dissipation at Max Load (BTU/h)
212
Operating Temperature
-40°C to +75°C
Storage Temperature
-40°C to +85°C
Recommended PSUs
AMGPSU-I48-P60A (60W 52VDC)
AMGPSU-I48-P120A (120W 52VDC)
IP Rating
IP40
Product Class
Industrial Grade
Warranty
AMG Lifetime Warranty
Number of Ports
1-2
Compliance
NDAA Compliant
TAA Compliant
Traffic Certification
NEMA TS2
Dimension Drawing (mm)

Dimensions
Width = 36 (mm) / 1.42 (in)
Depth = 88 (mm) / 3.46 (in)
Height = 107 (mm) / 4.21 (in)
