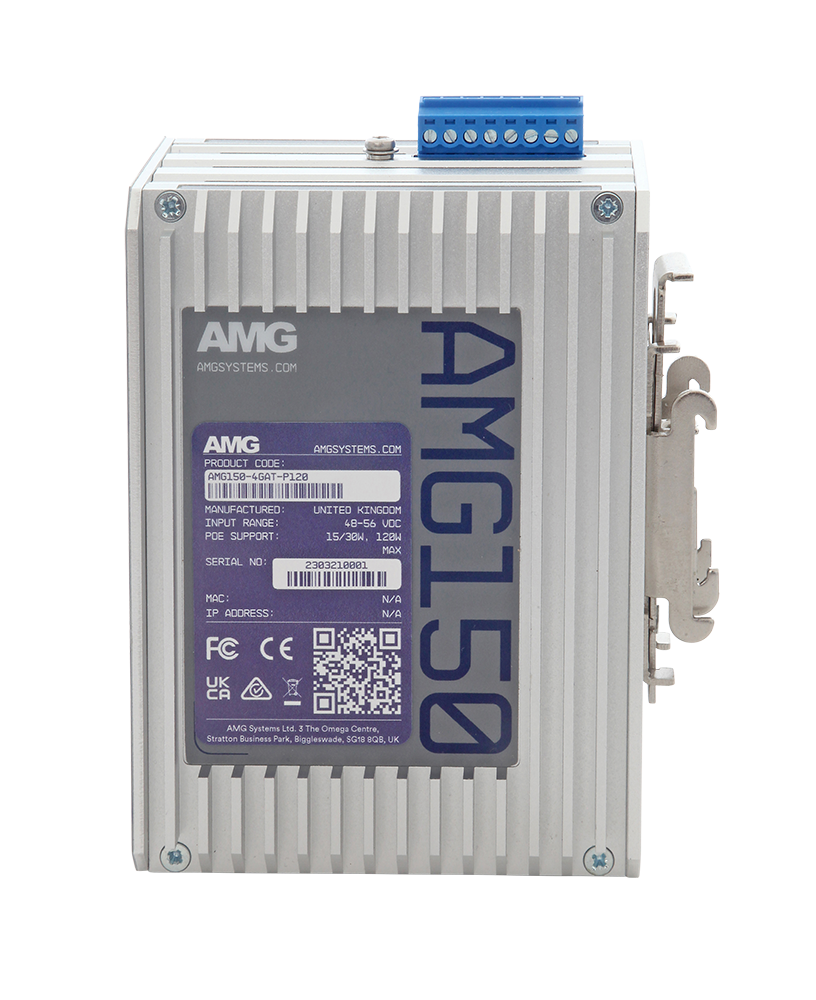

AMG150-4GAT-P120
5060811142868

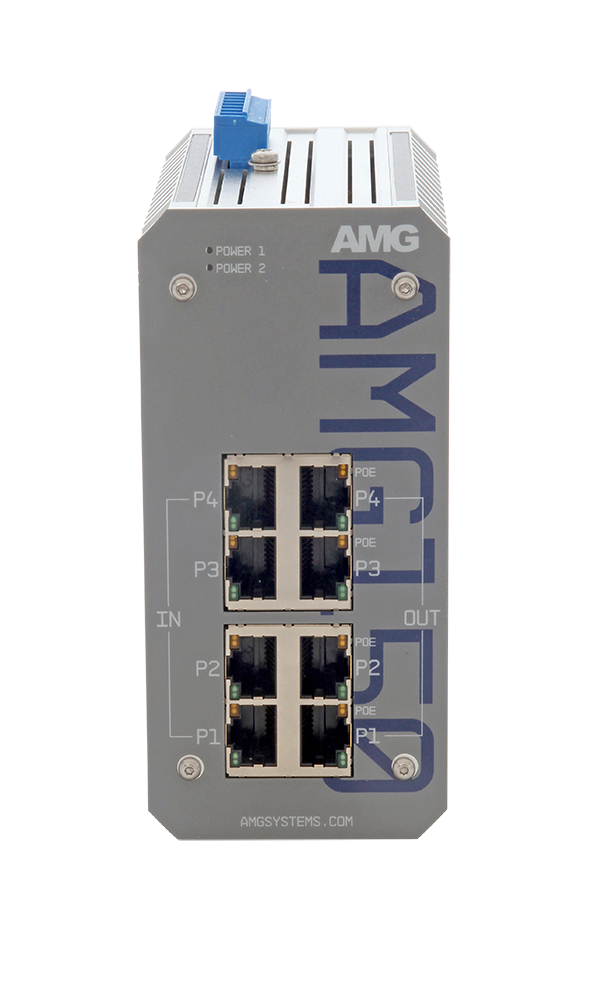

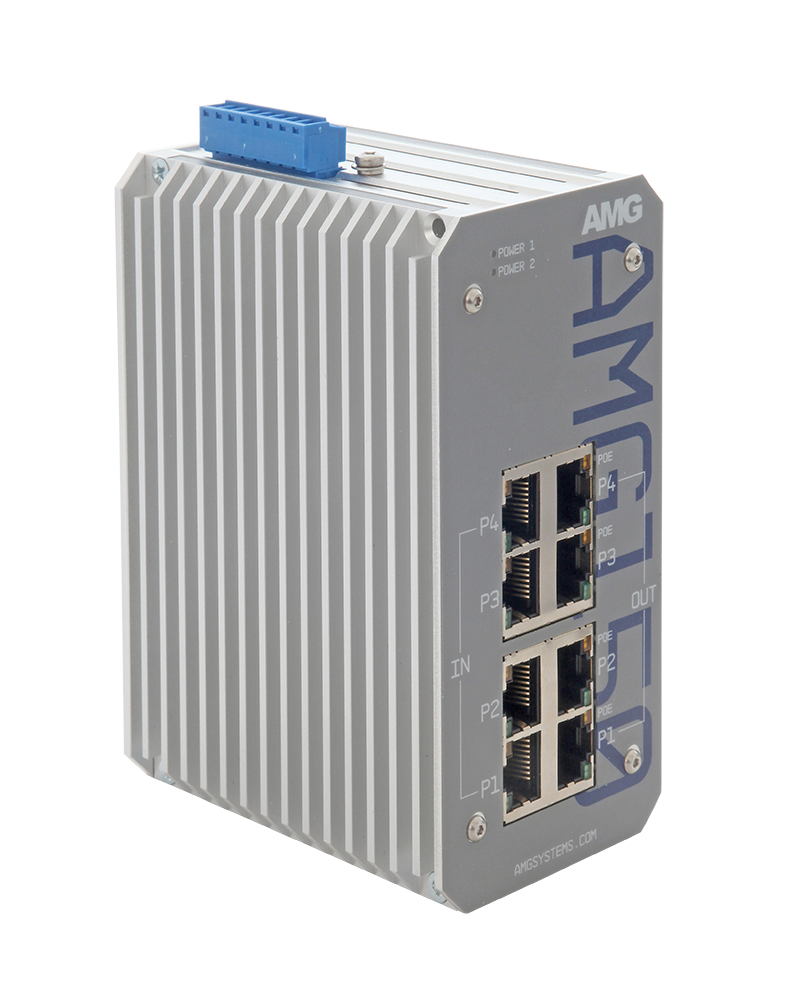

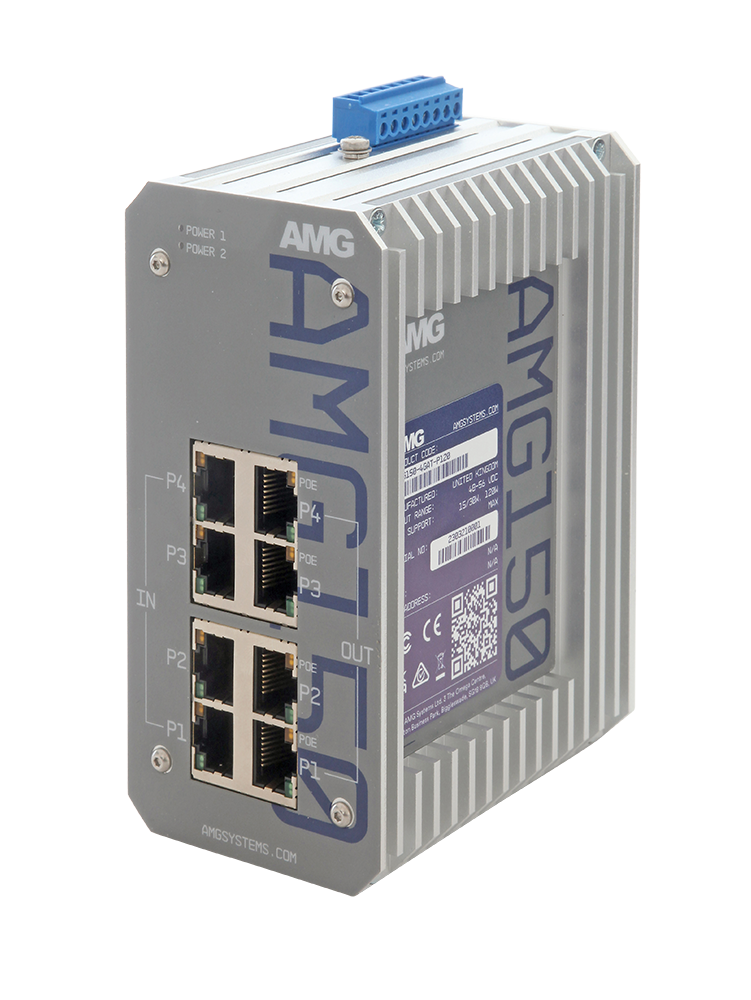

Industrial 4 Port PoE Injector, 4 x 10/100/1000Base-T(x) RJ45 Ports (Input), 4 x 10/100/1000Base-T(x) RJ45 Ports With 802.3at 30W PoE (Output), DIN Rail / Wall Mount, -40°C to +75°C, 50-56 VDC Power Input
Features

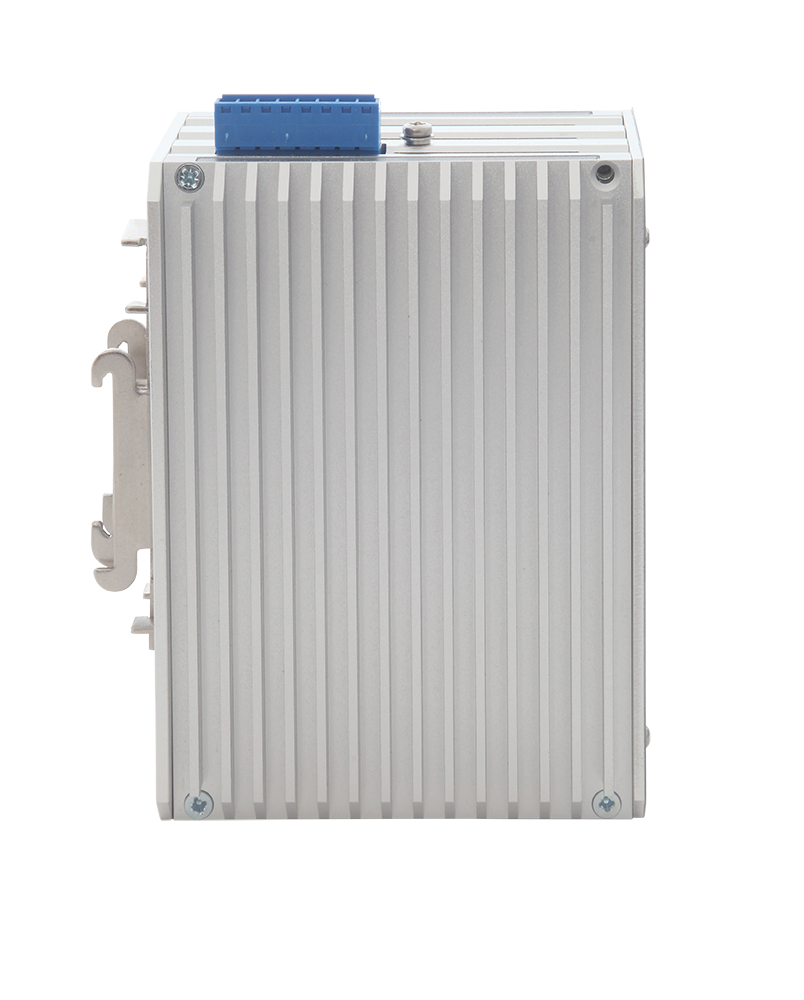

- Innovative thermally efficient housing ensures high levels of device reliability under full load
- -40°C to +75°C temperature maintains performance in extreme conditions
- Plug & Play – no need for any user configuration

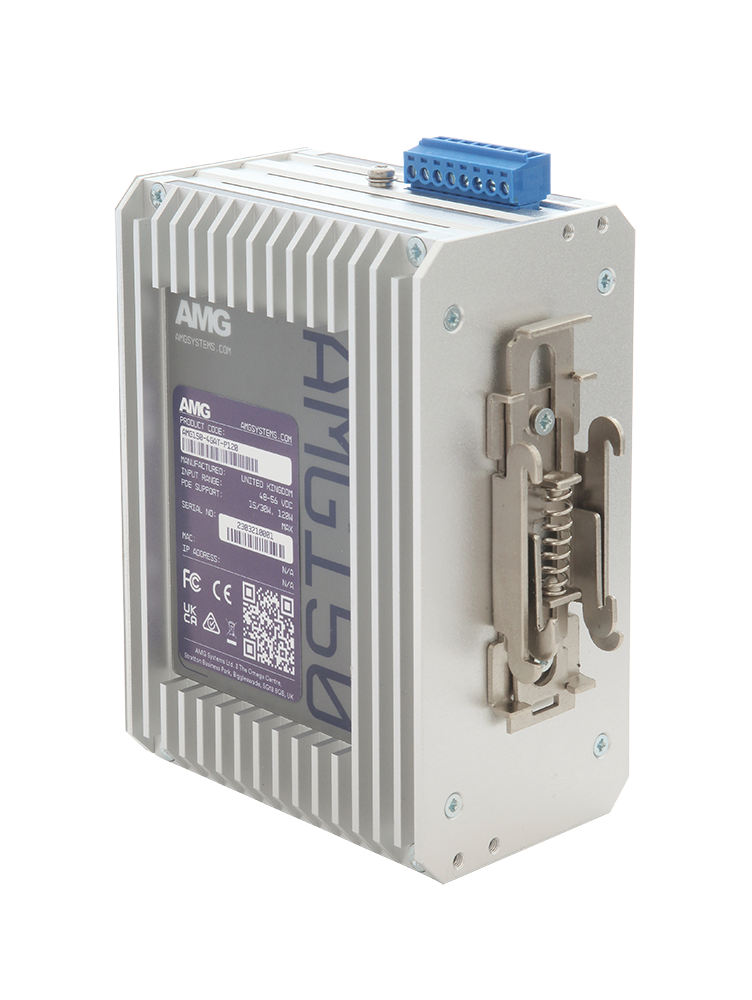

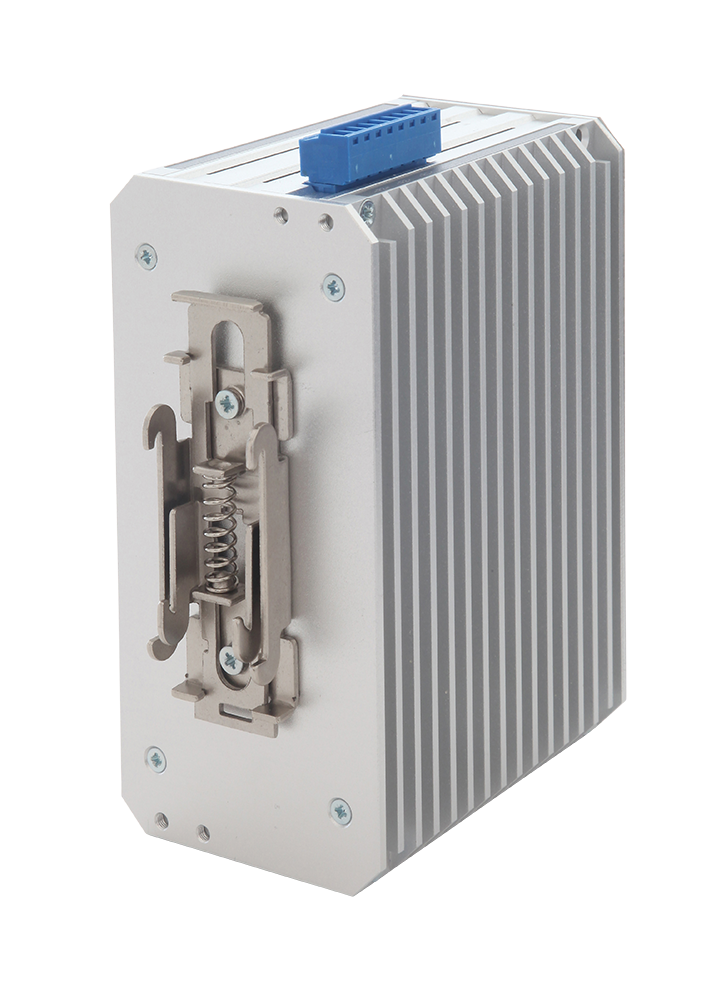

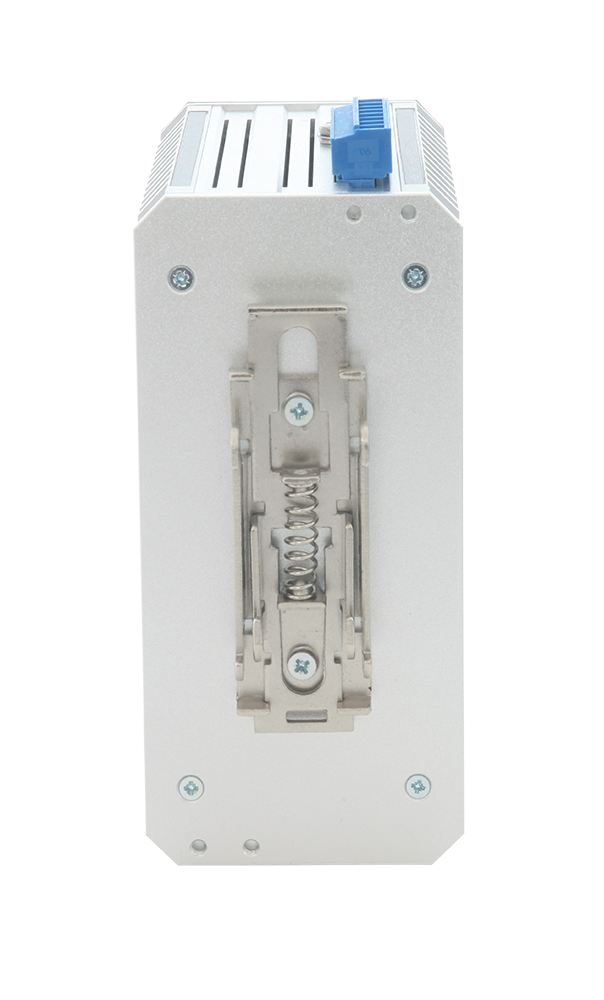

- DIN rail or wall mountable – quick to install and remove for maintenance
- Power supply & PoE fault relay outputs
- Gigabit multirate RJ45 ports support all standard 10/100/1000Mb speeds
- Dual redundant power inputs
- Supports 15W and 30W PoE
- Transparent to all traffic types including Jumbo Frames, VLAN’s and Multicast etc.
- Designed in the USA & UK. Manufactured in the United Kingdom
- AMG Lifetime Support Warranty
Product Status
Active
Designed in compact DIN rail or wall mount housings, the AMG150 series industrial Power over Ethernet (PoE) injectors are ideally suited for providing power to remote edge network devices.
Available with multiple ports in both IEEE802.3at 30W or IEEE802.3bt 60/90W they are suitable for powering the latest high powered PoE devices over a wide industrial operating temperature range.
Four or six full speed 10/100/1000BASE-T(x) ports provide Ethernet In along with Ethernet Out plus 30, 60 or 90W IEEE active PoE (Passive PoE not supported).
Fitted with dual redundant power inputs and both power and PoE failure alarm relays ensures maximum operating reliability and the highest levels of performance with notification on failure.
A wide range of models are available to suit all design requirements.
PSUs need to be ordered separately.
1Gb RJ45 Ports
4
30W PoE Ports
4
MTBF (Hours)
250000
Power Consumption (W)
2
Power Inputs
2
Power Interface
8 Pin Removable Terminal Block
Input 1 Voltage
50-56 VDC
Input 2 Voltage
50-56 VDC
Heat Dissipation at Max Load (BTU/h)
416
Operating Temperature
-40°C to +75°C
Storage Temperature
-40°C to +85°C
Recommended PSUs
AMGPSU-I48-P120A (120W 52VDC)
AMGPSU-I48-P240A (240W 52VDC)
IP Rating
IP40
Product Class
Industrial Grade
Warranty
AMG Lifetime Warranty
Number of Ports
4-6
Compliance
NDAA Compliant
TAA Compliant
Dimension Drawing (mm)
Dimensions
Width = 60 (mm) / 2.36 (in)
Depth = 93 (mm) / 3.66 (in)
Height = 126 (mm) / 4.96 (in)
Depth = 93 (mm) / 3.66 (in)
Height = 126 (mm) / 4.96 (in)
